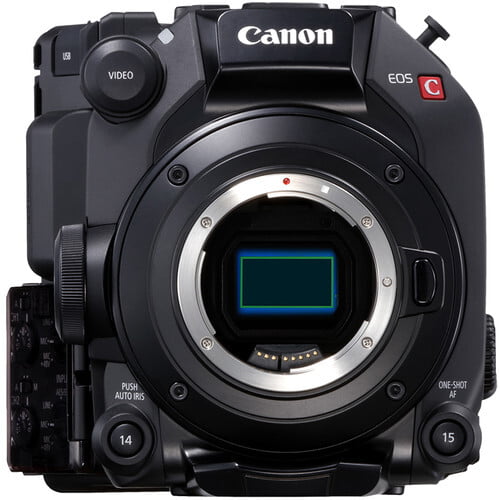

Canon EOS C300 Mark III Digital Cinema Camera Body (EF Lens Mount)

Sensor Size

Sensor Type

CMOS

Sensor Resolution

Actual: 9.6 Megapixel (4206 x 2280)
Effective: 8.85 Megapixel (4096 x 2160)

Pixel Pitch

6.4 µm

Color Filter

Bayer

ISO

100 to 102,400 (Expanded)

Gain

-6 to 54 dB (Native)
-2 to 54 dB (Expanded)

Advertised Dynamic Range

16 Stops

Lens Mount

Canon EF

Lens Communication

Yes, with Autofocus Support

Interchangeable Lens Mount

Yes

Shutter Speed

1/12 to 1/2000 sec (In 24p/60p Mode)

Built-In ND Filter

Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64), 8 Stop (1/256), 10 Stop (1/1024) ND Filters

Built-In Microphone Type

None

Media/Memory Card Slot

Dual Slot: CFexpress Type B
Single Slot: SD/SDHC/SDXC

Variable Frame Rates

DCI 4K: 12 to 180 fps
UHD: 12 to 180 fps
DCI 2K: 12 to 180 fps
1080p: 12 to 180 fps

Raw Recording

Cinema RAW Light 10-Bit:
4096 x 2160 at 24/25/29.97/50/59.94 fps (250 to 1000 Gb/s)
2048 x 1080 at 12/15/20/23.98/24/25/29.97/50/59.94 fps (250 to 1000 Gb/s)
1920 x 1080 at 12/15/20/23.98/24/25/29.97/30/50/59.94/60 fps (250 to 1000 Mb/s)

Recording Modes

MXF/XF-AVC/XF-AVC Intra/XF-AVC Long GOP 4:2:2 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (17 to 810 MB/s VBR)
3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (17 to 810 MB/s VBR)
2048 x 1080p at 12/15/20/23.98/24/25/29.97/50/59.94/120 fps (17 to 810 Mb/s VBR)
2048 x 1080i at 50/59.94 fps (17 to 810 Mb/s VBR)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (17 to 810 Mb/s VBR)
1920 x 1080i at 50/59.94 fps (17 to 810 Mb/s VBR)
XF-AVC/XF-AVC Long GOP 4:2:2 10-Bit:
1280 x 720p at 50/59.94 fps (24 Mb/s VBR)

Gamma Curve

Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Rec709, Wide DR

Audio Recording

MXF: 2-Channel 24-Bit 48 kHz LPCM Audio

Still Image Support

None

Video Output

4:2:2 10-Bit via SDI/BNC:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1280 x 720p at 50/59.94/60 fps
4:2:2 10-Bit via HDMI:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1280 x 720p at 50/59.94/60 fps

Raw Output

HDMI In Raw Mode:
4096 x 2160 10-Bit
3840 x 2160 10-Bit
2048 x 1080 10-Bit
1920 x 1080 10-Bit
1280 x 720 10-Bit
SDI/BNC In Raw Mode:
4096 x 2160 10-Bit
3840 x 2160 10-Bit
2048 x 1080 10-Bit
1920 x 1080 10-Bit
1280 x 720 10-Bit

Video Connectors

1 x BNC (12G-SDI) Output
1 x BNC (12G-SDI) Monitor Output
1 x HDMI Output

Audio Connectors

2 x 3-Pin XLR Mic Level (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm Stereo Mic Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O

1 x BNC Timecode Input
1 x BNC Timecode Input/Output
1 x 2.5 mm LANC Control Input

Display Type

Articulating Touchscreen LCD

Size

4.3"

Resolution

2,760,000 Dot

EVF

Optional, Not Included

EVF Display Type

OLED

Screen Size

.46"

EVF Resolution

1,170,000 Dots

Battery Type

Canon BP-A Series

Power Connectors

1 x 4-Pin LEMO (24 VDC at2 A) Input

Power Consumption

>34 W

Accessory Mount

1 x 1/4"-20 Female
1 x Cold Shoe Mount

Dimensions

5.9 x 7.2 x 7.2" / 149 x 183 x 183 mm (Without Grip)
7.5 x 7.2 x 7.4" / 19.1 x 18.3 x 18.8 cm (With Grip)
