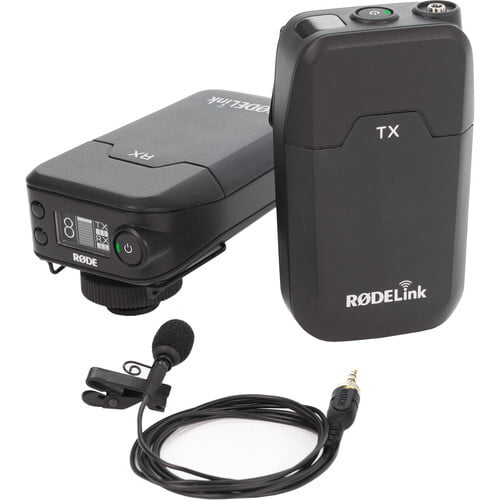

Rode RODELink Filmmaker Kit Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz)
The Rode RODELink Filmmaker Kit brings vloggers, DIY videographers, and content creators a cost-effective digital wireless microphone system with simple, plug-and-record operation, clean and reliable sound, and extended battery life.
Specification
System
Wireless Transmission | Digital 2.4 GHz |
Included Transmitters | 1 x Bodypack with Microphone |
Diversity | Frequency |
Max Operating Range | 330' / 100.6 m (Line of Sight) |
Max Systems per Setup | 8 |
Sample Rate/Resolution | 44.1 kHz / 24-Bit |
Latency | 4 ms (Maximum) |
Dynamic Range | 112 dB |
Encryption | 128-Bit |
Receiver
Form Factor | Camera-Mount (Bag Suitable) |
Mounting Options | Belt Clip, Shoe-Mount (with Included Hardware) |
Antenna | Internal |
Number of Audio Channels | 1 |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable) |
Audio Output Level | 0 dBV (Max) |
Frequency Response | 35 Hz to 22 kHz |
USB/Lightning Connectivity | 1 x Micro-USB (Bus Power) |
Impedance | 1/8" / 3.5 mm Output: |
Power Requirements | Battery, Bus Power (USB) |
Battery Type | 2 x AA (Not Included) |
Approx. Battery Life | 30 Hours (Alkaline) |
Display & Indicators | 1 x OLED (Battery Status, Channel, Mute, Peak) |
Housing | Plastic |
Dimensions | 2.6 x 4.4 x 2" / 65 x 111 x 52 mm |
Weight | 6.7 oz / 190 g |
Transmitter 1
Transmitter
Form Factor | Bodypack |
RF Output Power | Not Specified by Manufacturer |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
Plug-In Power | 4 V |
Pad | None |
Muting | Programmable Mute Switch |
Audio Input Level | 1 V RMS (Max) |
Signal Processing | None |
Frequency Response | 35 Hz to 22 kHz |
Antenna | 1 x Internal |
Power Requirements | Battery, Bus Power (USB) |
Battery Type | 2 x AA (Not Included) |
Approx. Battery Life | 30 Hours (Alkaline) |
USB/Lightning Connectivity | 1 x Micro-USB (Bus Power) |
Display & Indicators | 1 x LED (Battery Status, Mute) |
Housing | Plastic |
Dimensions | 2.6 x 4.4 x 1.6" / 65 x 111 x 40 mm |
Weight | 6.7 oz / 190 g |
Microphone
Form Factor | Lavalier |
Sound Field | Mono |
Capsule | Electret Condenser |
Diaphragm | 0.10" / 2.54 mm |
Polar Pattern | Omnidirectional |
Frequency Range | 60 Hz to 18 kHz |
Equivalent Noise Level | 25 dB A-Weighted |
Maximum SPL | 110 dB SPL |
Impedance | 3 Kilohms |
Sensitivity | -33.5 dB at 1 kHz |
Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
Length | 0.47" / 12 mm |
Diameter | 0.18" / 4.5 mm |
Weight | 0.04 oz / 1 g |
Packaging Info
Package Weight | 1.25 lb |
Box Dimensions (LxWxH) | 7 x 5.2 x 5.05" |
