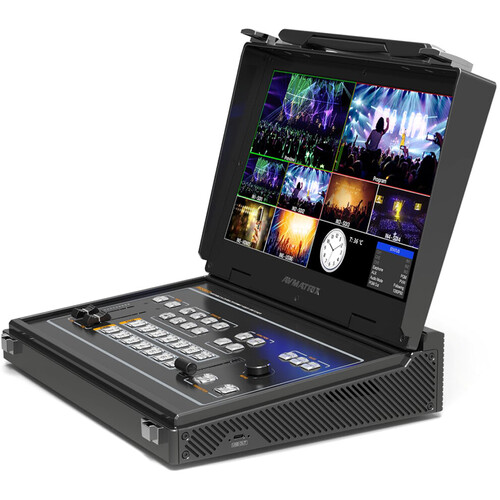

AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher

Video Output Connectors

1 x HDMI (Program)
2 x BNC (3G-SDI) (Program)
1 x USB Type-C

Output Video Format

HDMI / SDI
1080p: 24/25/30/50/60 fps
1080i: 50/60 fps
USB Type-C
WUXGA (1920 x 1200)
1080p
WUXGA+ (1680 x 1050)
UXGA (1600 x 1200)
WXGA+ (1440 x 900)
FWXGA (1366 x 768)
SXGA (1280 x 1024)
1280 x 960
WXGA (1280 x 800)
1280 x 720 (Non-Standard WXGA)
XGA (1024 x 768)
1024 x 576
960 x 540
856 x 480
SVGA (800 x 600)
PAL (768 x 576)
720 x 480
VGA (640 x 480)
640 x 360

Audio Output Connectors

1 x 1/8" / 3.5 mm TS Stereo
1 x 2RCA Analog

Multiview Output

6-Way Multiview viaHDMI, SDI

Other I/O

1 x BNC Output
1 x DE-15/DB-15 Tally
1 x RJ45 LAN

Video Standard Compliance

SMPTE 259M/292M/424M

Display Size

13.3"

Screen Resolution

1920 x 1080

OS Compatibility

Windows 10
Windows 8
Windows 7
macOS 10.8 or Later
Linux 2.6.38 or Later

Power Connector

1 x Barrel (12 VDC at 2 A) Input

Power Consumption

25 W

Operating Temperature

-4 to 140°F / -20 to 60°C

Storage Temperature

-22 to 158°F / -30 to 70°C

Operating Humidity

20 to 70%

Weight

8.8 lb / 4 kg

Package Weight

Box Dimensions (LxWxH)

15.2 x 14.5 x 5"
