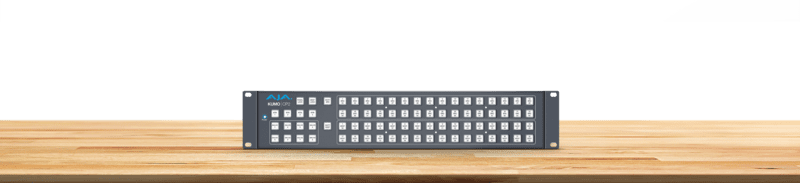

Aja 2RU Control Panel for all KUMO routers
$1,255.00
Tags:
KUMO CP2 is a 2RU control panel that can be used in standalone or networked configurations suitable for all KUMO routers including the KUMO 6464.
Product Details
SPECIFICATION
User Interface
- 80 buttons with removable overcap for lens chips
- Includes factory installed lens chip set
- High and Low button tally indication, configurable brightness
- Controls up to four KUMO routers
- Panel Lock feature
- Destination Lock feature
Router Support
- KUMO 1604
- KUMO 1616
- KUMO 3232
- KUMO 6464
- KUMO 1616-12G
- KUMO 3232-12G
- KUMO 6464-12G
Salvo
- 8 Salvos buttons can be enabled to trigger a KUMO router's configured salvos.
Network Interface
- 1x RJ-45, 10/100/1000 Ethernet
- Embedded web server for remote control
USB Interface
- 1x Mini-USB for IP configuration using AJA eMini-Setup
Size (w x d x h)
- 2RU - 17.4" x 1.3" x 3.5" (441.96 x 33.02 x 88.9 mm)
Weight
- 2.1 lb (1.0 kg)
Power
- External power supply required
- Enclosure: Dual, redundant, 10-14VDC regulated, 4-pin Molex, 4W typical, 9.6W max.
- AC adapter, included: 100-240VAC, 50/60 Hz, universal input, 60W
- Optional redundant AC adapter sold separately, KUMO-PWR
Environment
- Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
- Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
