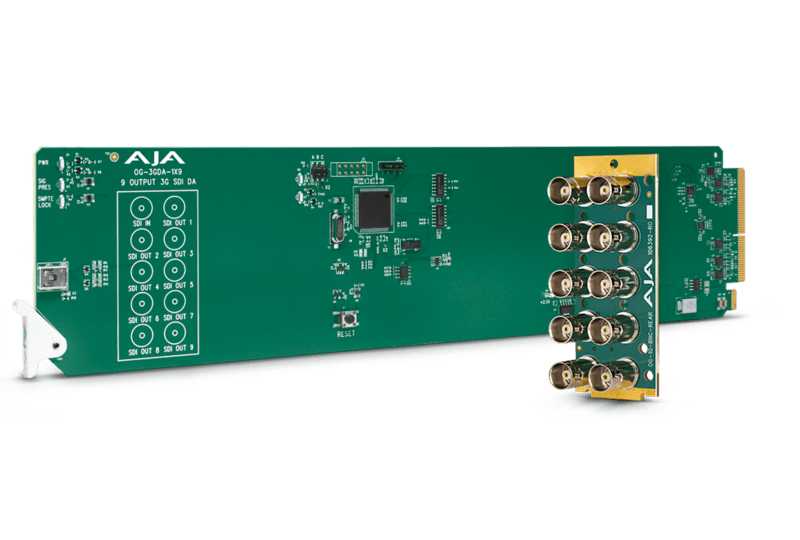

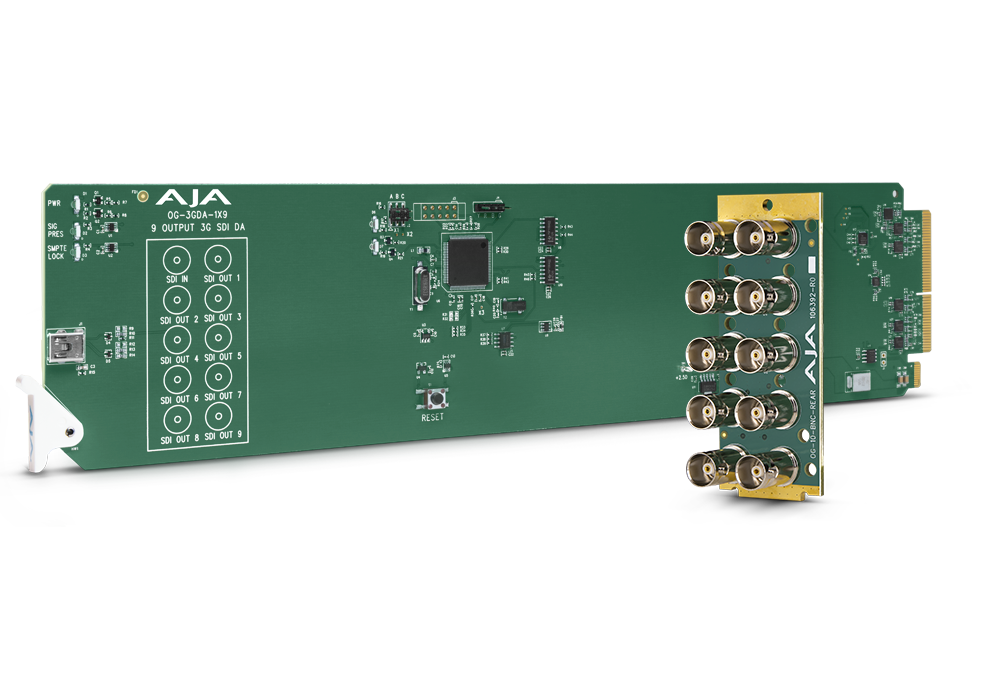

Aja OG-3GDA-1x9 OpenGear 1x9 3G-SDI Reclocking DA

Video Formats

150 Mbps - 3 Gbps, format agnostic

Video Input Digital

1x 3G-SDI BNC, SMPTE-259/292/424

Video Output Digital

9x 3G-SDI BNC, SMPTE-259/292/424

5x outputs noninverting

Cable Equalization

(Belden 1694A coax)

270 Mbps, 350m

1.5 Gbps, 200m

3 Gbps, 120m

Reclocking

270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select

All other rates are passed through and not reclocked

User Controls

openGear DashBoard network control software via Windows, macOS or Linux

Size (w x d x h)

openGear standard form factor, front slot and rear card

Two slots required for each card

Weight

0.5 lb (0.3 kg)

Power

openGear frame compatible, 2.5 watts max per card

Environment

Safe Operating Temperature Range: 0C to 40C (32F to 104F)

Safe Storage Temperature Range (power OFF):-40C to 60C (-40F to 140F)

Operating Relative Humidity :10-90% noncondensing

Operating Altitude: <3,000m (<10,000ft)
