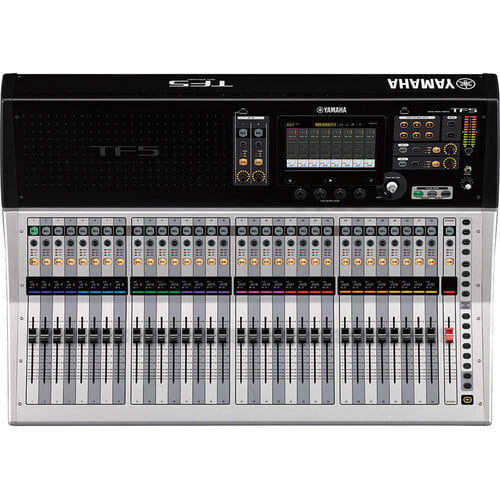

Yamaha TF5 Digital Mixing Console

Number of Analog Input Channels

32

Mix Routing

1 x Main LRC
1 x Subgroup
6 x Stereo Aux Send
8 x Mono Aux Send

Groups

8 x DCA Group

Faders

33 x 3.9" / 100 mm Motorized

Gain/Trim Range

-6 dB to +66 dB

Graphic EQ

Yes

Internal Effects

8 x Effect (Type Unspecified)

Sample Rates

48 kHz

Bit Depth

Record:
24-Bit

Converter Dynamic Range

D/A:
110 dB

Latency

< 2.6 ms (Analog Input to Analog Output)

Frequency Response

20 Hz to 20 kHz +0.5/-1.5 dB

Max Input Level

Mic/Line Input:
+30 dBu
Stereo Input:
+10 dBV

Output Level

Output:
+4 dBu (Nominal)
+24 dBu (Max)

Analog Dynamic Range

107 dB at Min Gain

Headphone Output Power

3 mW
75 mW (Max)

I/O Impedance

Combo XLR-1/4" Input:
7.5 Kilohms
Stereo RCA Input:
10 Kilohms
XLR Output:
75 Ohms
Headphone Output:
100 Ohms

Crosstalk

-100 dB

EIN

-128 dBu at Max Gain (A-Weighted)

Noise Floor

-85 dBu A-Weighted

THD

< 0.05% at Min Gain (+4 dBu)

Analog Inputs

1 x 1/4" TS Footswitch Input
32 x Combo XLR-1/4" TRS Balanced Mic/Line Input
2 x 2RCA Unbalanced Input

Analog Outputs

16 x XLR Balanced Output
1 x 1/4" TRS Unbalanced Headphone Output

Digital I/O

1 x RJ45 (Network)

USB

1 x USB Type-B (Host Connection)
2 x USB Type-A (Control, External Memory)

Expansion Ports

1 x I/O Card

Max Multitrack Recording

34 Tracks

File Format Support

Playback: MP3, WAV
Record: WAV

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Power Consumption

120 W

Dimensions

34.1 x 8.9 x 23.6" / 866 x 225 x 599 mm

Weight

44.1 lb / 20 kg

Package Weight

Box Dimensions (LxWxH)

38 x 29 x 13"
