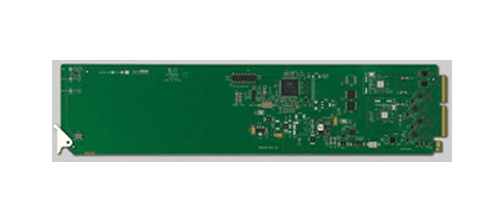

Ross Video DRA-8804 Dual 3G Reclocking Distribution Amplifier
Non-returnable
$790.00
Tags:
Dual High Performance 3G Reclocking Distribution AmplifierThe DRA-8804 is a 2 channel, 3G distribution amplifier, redesigned using the latest technology and optimized to achieve the industry’s best EQ performance offering cable lengths up to 120m at 3G. Equalization and reclocking is performed on all common serial digital signals, including 3G / HD / SD SDI. Non-inverting output drivers, using the -R2 rear module, makes this ideal for distributing DVB-ASI signals as well.
Key Features
- 2 independent channels of SDI distribution on one card
- Equalizes and reclocks all SDI signals from 143Mb/s to 2.97Gb/s
- Non-inverting outputs, using the -R2 rear module, perfect for DVB-ASI distribution
- Input EQ 3G- 120m at2.97Gb, HD - 200m at1.485Gb, SD -500m at270Mb
- Configurable to 1x16 with A/B input failover protection (using –R2H rear module)
- Automatic detection of incoming data rate
- Standard BNC and HD-BNC rear module I/O options
- Up to 20 channels of 1x8 distribution in a single frame
- LED indicators for signal presence and data rate for each channel
- Excellent input / output return loss specifications
- 10 DRA-8804 cards in the OG3-FR frames
- 5-year transferable warrant
Product Details
- 2 independent channels of SDI distribution on one card
- Equalizes and reclocks all SDI signals from 143Mb/s to 2.97Gb/s
- Non-inverting outputs, using the -R2 rear module, perfect for DVB-ASI distribution
- Input EQ 3G- 120m @2.97Gb, HD - 200m @1.485Gb, SD -500m @270Mb
- Configurable to 1x16 with A/B input failover protection (using –R2H rear module)
- Automatic detection of incoming data rate
- Standard BNC and HD-BNC rear module I/O options
- Up to 20 channels of 1x8 distribution in a single frame
- LED indicators for signal presence and data rate for each channel
- Excellent input / output return loss specifications
- 10 DRA-8804 cards in the OG3-FR frames
