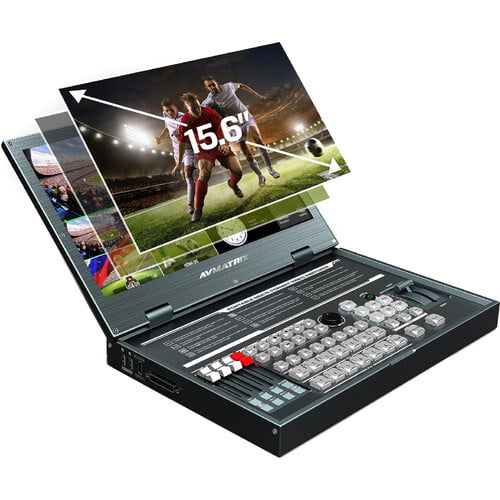

AvMatrix 6 Channel Multi-format Video Switcher

LCD Display Size

15.6"

Resolution

1920 x 1080

Video Inputs

4 x BNC SDI
2 x HDMI
2 x DVI
2 x VGA
2 x USB Type-A

SDI Video Rates

SD, HD, 3G-SDI

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 424M

Bit Rate

270 Mb/s to 3 Gb/s

SDI Input Formats

1080p: 60/59.94/50/30/29.97/25/24/23.98
1080psF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
625i: 50 PAL
525i: 59.94 NTSC

HDMI Input Resolutions

4K: 60/50/30
2K: 60/50/30
1080p: 60/59.94/50/30/29.97/25/24/23.98/23.976
1080i: 50/59.94/60
720p 60/59.94/50/30/29.97/25/24/23.98
576i: 50
576p: 50

VGA Input Resolutions

VGA/DVI at 60 Hz:
1920 x 1080
1680 x 1050
1600 x 1200
1600 x 900
1440 x 900
1366 x 768
1360 x 768
1280 x 1024
1280 x 960
1280 x 800
1280 x 768
1280 x 720
1152 x 864
1024 x 768
640 x 480

Color Space

SDI: 10-Bit YUV 4:2:2
HDMI: 8/10/12-Bit RGB 4:4:4, 8/10/12-Bit YUV 4:4:4, YUV 8/10/12-Bit 4:2:2

Video Outputs

3 x HD/3G-SDI
2 x HDMI Type A
1 x Multiview HDMI Type A

Output Resolutions

1080p: 50/60/30/25/24
1080i: 50/60
1080p (Multiview): 60

Input/Output Return Loss

>15 dB, 5 MHz to 3 GHz

Signal Amplitude

800 mV ±10% over SDI/HDMI/DVI/VGA

Impedance

75 Ohms over SDI/VGA, 100 Ohms over HDMI/DVI

DC Offset

0 V ± 0.5 V

Audio Input

1 x TRS (L/R), 50 Ohms

Audio Output

1 x TRS (L/R), 50 Ohms
1 x 3.5 mm Earphone, 100 Ohms

Other Inputs/Outputs

1 x RJ45 (Time Sync and Firmware)
1 x SD Card Slot (Record up to 1080p60)
1 x GPIO (Tally)

Power

12 VDC, 2.75 A

Power Consumption

<33 W

Operating Temperature

-4°F to 140°F / -20° to 60°C

Storage Temperature

-22°F to 158°F / -30°C to 70°C

Operating Humidity

20 to 70% RH

Storage Humidity

0 to 90% RH

Dimensions

14.8 x 10.7 x 1.7" / 37.5 x 27.2 x 4.4 cm

Weight

8.4 lb / 3.8 kg

Package Weight

Box Dimensions (LxWxH)

20.3 x 14.7 x 5.8"
