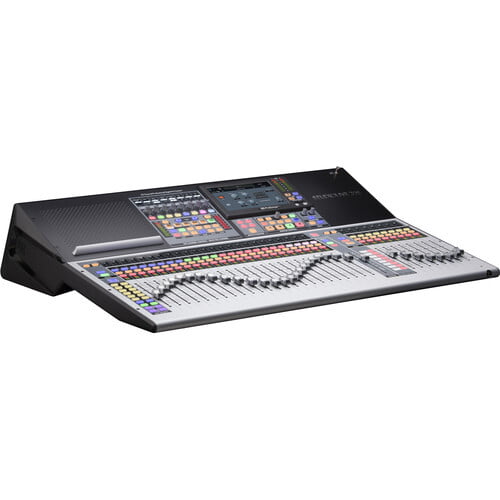

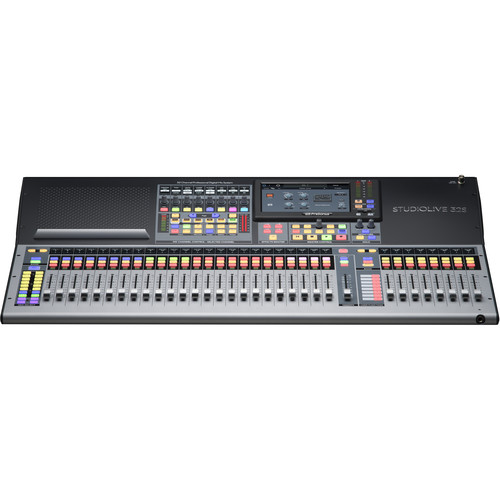

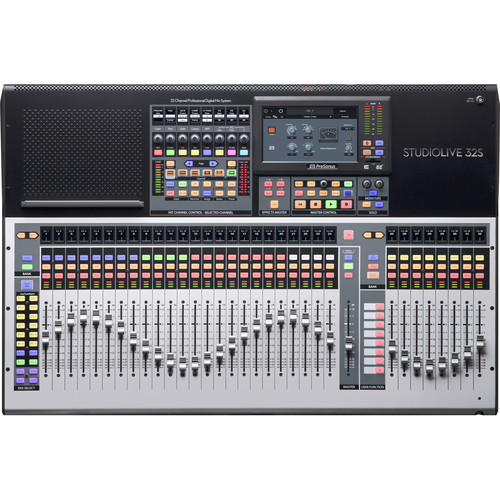

PreSonus STUDIOLIVE 32S Series III S 40-Channel Digital Mixer/Recorder/Interface

32

Number of Mic Preamps

32

Mix Routing

26 x Bus

Faders

33

Gain/Trim Range

Mic:
0 dB to +60 dB

EQ

Input Channels:
4-Band EQ
Outputs:
6-Band EQ

Solo/Mute

Solo, Mute per Input Channel

Sample Rates

44.1 / 48 kHz

Bit Depth

AD/DA Conversion:
24-Bit

DSP

Dual-Core 32-Bit Floating Point

Converter Dynamic Range

115 dBA at 48 kHz

Jitter

< 20 ps RMS

Jitter Attenuation

> 60 dB

Latency

1.9 ms (Analog Input to Analog Output)

dBFS Reference Level

+18 dBu = 0 dBFS

Frequency Response

Headphone Output:
20 Hz to 20 kHz ±0.5 dB
Mic/Line Input to Main Output:
20 Hz to 20 kHz ±0.5 dBu (Unity Gain)

Max Input Level

Mic Input:
+12 dBu
Line Input:
+18 dBu
Tape Input:
+12 dBu

Output Level

Line Output:
+18 dBu (Max)
Tape Output:
+18 dBu (Max)
XLR Output:
+24 dBu (Max)

Headphone Output Power

100 mW per Channel into 60 Ohms

I/O Impedance

Mic Input:
1 Kilohms
Line Input:
10 Kilohms
XLR Output:
100 Ohms
Line Output:
100 Ohms
Tape Output:
100 Ohms

Crosstalk

Input to Output:
-90 dB
Adjacent Channels:
-87 dB

CMRR

65 dB at Unity Gain

SNR

Mic/Line Input to Main Output:
94 dBA at Unity Gain (+4 dBu Reference)
Headphone Output:
96 dB at Max Gain

THD

Mic/Line Input to Main Output:
< 0.005% at Unity Gain (+4 dBu, Unweighted)

THD+N

Headphone Output:
0.01% at Max Gain (Unweighted)

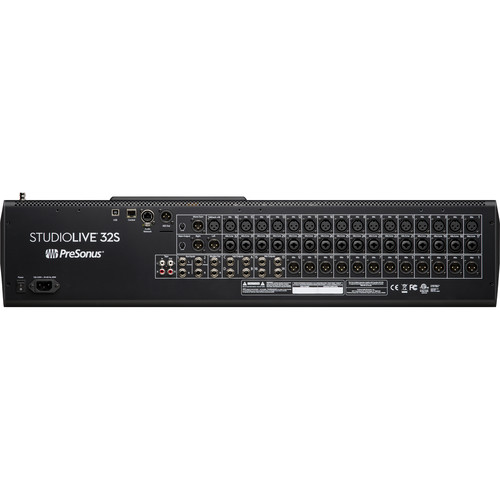

Analog Inputs

1 x XLR Talkback Input
16 x XLR 3-Pin Mic Input
16 x Combo XLR-1/4" TRS Mic/Line Input
4 x 1/4" TRS Aux Return (2 Stereo Pairs)
1 x 2RCA Tape Input (1 Stereo Pair)

Analog Outputs

1 x 2RCA Tape Output (1 Stereo Pair)
12 x XLR 3-Pin Aux/Matrix/Subgroup Output
4 x 1/4" TRS Aux/Matrix/Subgroup Output
2 x XLR 3-Pin Main Output
1 x XLR 3-Pin Mono Sum Output
2 x 1/4" TRS Monitor Output
1 x 1/4" TRS Headphone Output
4 x 1/4" TRS Subgroup Output

+48 V ±2 V (Selectable on Individual Inputs)

Digital I/O

1 x RJ45 (Control, 1 Gb/s)
1 x RJ45 AVB (I/O)
1 x XLR AES3 Output

MIDI I/O

None

USB

1 x USB Type-B (USB 2.0)

Wireless Connectivity

Bluetooth

Bluetooth

4.1

OS Compatibility

macOS 10.8.5 or Later
Windows 7
Windows 8.1
Windows 10
iOS 10 or Later
Android 5.0 or Later

Processor Requirement

Intel Core 2 Duo

RAM Requirements

4 GB, 8 GB Recommended

Storage Requirements

30 GB

Mobile Device Compatibility

iPad
Android Smartphone
Android Tablet

Minimum Display Resolution

1366 x 768

Internet Connection

Yes

Available USB 2.0 Port

AC Input Power

90 to 230 VAC, 50 / 60 Hz

Power Consumption

85 W

Lamp Power

12 VDC

Operating Temperature

32 to 104°F / 0 to 40°C

Dimensions

32.4 x 23 x 6.5" / 82.2 x 58.3 x 16.5 cm

Weight

37.2 lb / 16.9 kg

Package Weight

52 lb

Box Dimensions (LxWxH)

37.5 x 31 x 12.5"
