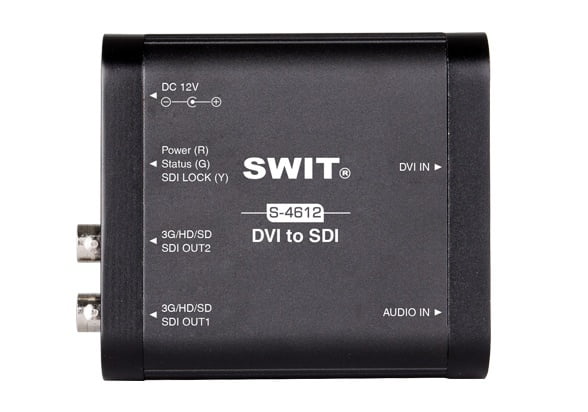

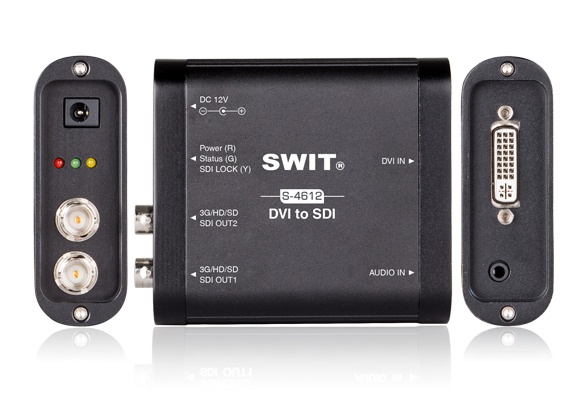

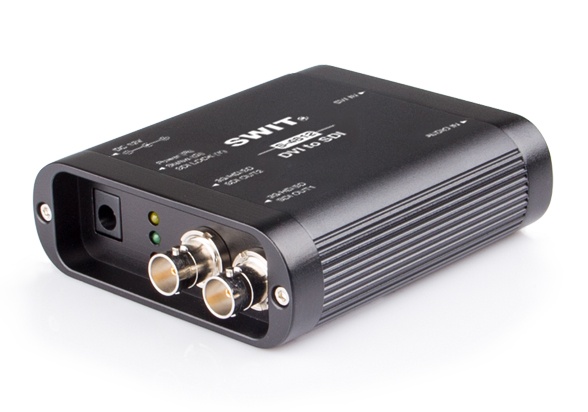

Swit S-4612 DVI to SDI Converter

Input

1 x DVI-D (18+1)
1 x 3.5 mm analog audio port

Output

2 x BNC 3G/HD/SD-SDI output

Video Format

SDI:
SMPTE-425M: 1080p (60 / 59.94 / 50)
SMPTE-274M: 1080p (30 / 29.97 / 25 / 24 / 23.98), 1080i (60 / 59.94 / 50)
SMPTE-RP211: 1080psF (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)

DVI:
1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
576i / 480i

Audio

48 kHz sync

Power

≤ 3 W

Operating Voltage

6 to 18 VDC (AC-DC Power Adapter included)

Operating Temperature

32 to 158°F (0 to 70°C)

Humidity

10 to 90%

Dimensions

3.8 x 3.3 x 1.1" (9.8 x 8.4 x 2.9 cm)

Weight

7.3 oz (207.0 g)

Package Weight

Box Dimensions (LxWxH)

6.5 x 4.9 x 3"
