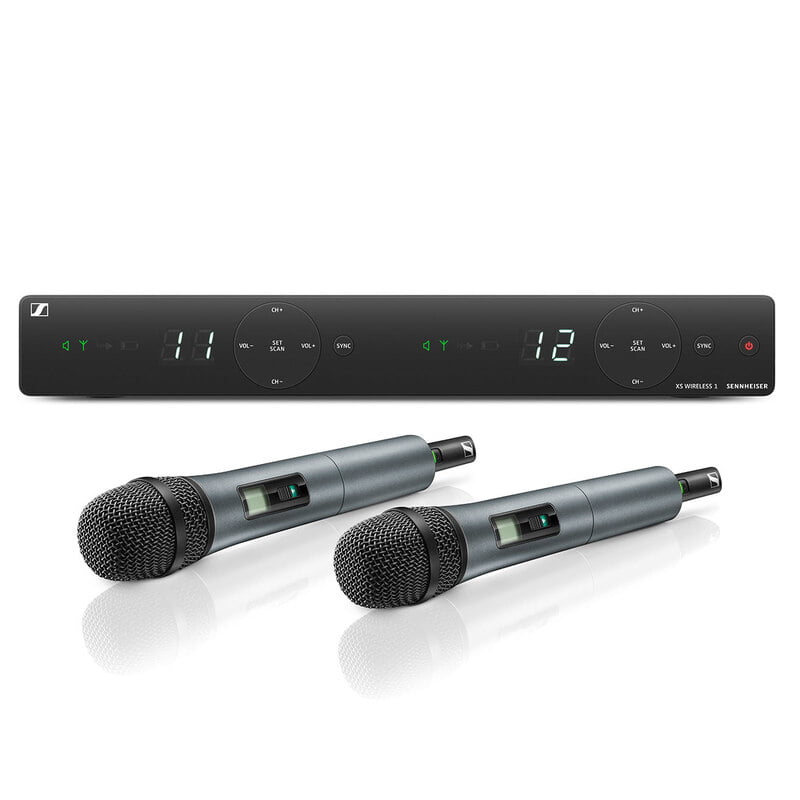

Sennheiser XSW 1-825 DUAL-C
$600.00
Tags:
Amplify your tunes. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band.
Product Details
Specifications
- Dimensions
- Receiver: approx. 200 x 42 x 127 mmBodypack transmitter: approx. 71 x 96 x 28 mm
- THD, total harmonic distortion
- ≤ 0.9%
- Weight
- approx. 340g (receiver), approx. 95g (transmitter)
- Signal-to-noise ratio
- ≥ 103 dBA
- RF output power
- 10 mW
- Switching bandwidth
- up to 24 MHz
- Operating time
- approx. 10 hrs
- Modulation
- Wideband FM
- Power supply
- Receiver: 12 V DC nom. / 300 mATransmitter: 2 AA size batteries, 1.5 V
- Output voltage
- 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Housing
- Rugged ABS housing
- Frequency
- 8 frequency banks, each with up to 10 factory-preset channels
- Frequency range
- A: 548-572 MHz, GB: 606-630 MHzB: 614-638 MHzC: 766-790 MHzD: 794-806 MHzE: 821-832 MHz, 863-865 MHzK: 925-937.5 MHz
- Sensitivity
- < 3 μV at 52 dB(A)rms S/N
- SPL for peak deviation
- 130 dB
- Squelch
- adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
- Synchronization
- 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity
- 1.5 mV / Pa
- AF frequency response
- Receiver: 50 to 16,000 Hz (–3 dB)
- Adjustment Range Transmitter
- 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range
- 45 dB, adjustable in 5-dB steps
- Line / Mic level
- 20 dB, switchable
- Temperature Range
- operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle
- double superheterodyne
- Diversity principle
- Antenna switching diversity via internal antennas
