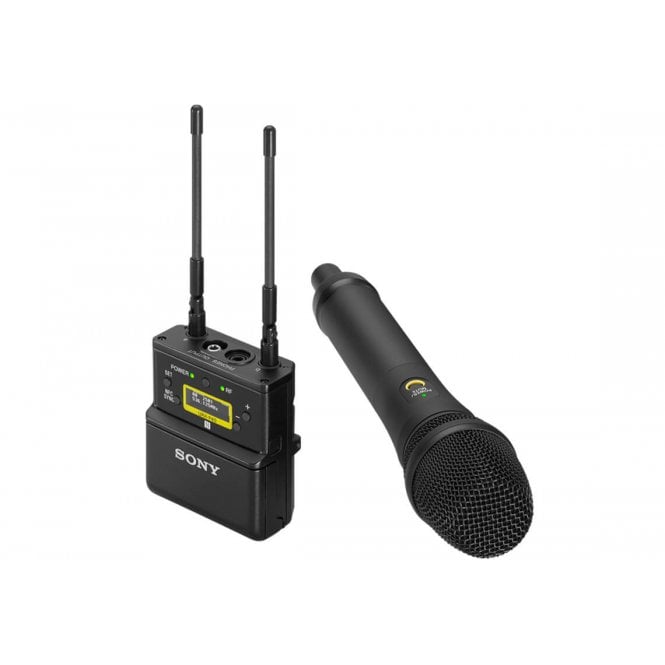

Sony UWP-D22-K21 UHF Wireless Set Consisting Of Handheld Microphone & RX

Specification

URX-P40 portable receiver

• Oscillator type: Crystal-controlled PLL synthesizer
• Reception Type: True diversity method
• Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)
• Carrier Frequencies: 21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29)

Frequency Response:

• 23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models)
• 40 Hz to 15 kHz (typical) (J model)
• Signal-to-Noise Ratio: 60 dB (1 kHz sine wave, 5 kHz modulation)
• Distortion (T.H.D): 0.9% or less (1 kHz sine wave, 5 kHz modulation)

Audio Delay:

• Approx. 0.35 ms (analog output)
• Approx. 0.24 ms (digital output)
• Audio Output Connector: 3.5 mm diameter 3-pole locking mini jack, external connection

Audio Output Level:

• –60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level)
• –20 dBFS (external connection, digital output, 0 dB audio output level)
• –50 dBFS (external connection, analog output, 0 dB audio output level)

• Analog Audio Output Adjustment Range: -12dB - +12dB (3dB step)
• Headphone Output Connector: 3.5 mm diameter mini jack
• Headphone Output Level: Max. 10mW (16-ohm)

Tone Signal Frequency:

• In UWP-D compander mode: 32.382 kHz
• In UWP compander mode: 32 kHz
• In WL800 compander mode: 32.768 kHz
• Display: OLED

Power Requirements:

• DC 3.0 V (two LR6/AA size alkaline batteries)
• DC 5.0 V (supplied from USB Type-C connector)
• Battery Life*: Approx. six hours

*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF.

• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage/Transport Temperature: –20 °C to +55 °C (–4 °F to +131 °F)
• Dimensions: 63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (W / H / D) (excluding antenna)
• Mass: Approx. 131 g (4.6 oz) (excluding batteries)

UTX-M40 Handheld microphone with unidirectional capsule

• Oscillator Type: Crystal-controlled PLL synthesizer
• Antenna Type: 1/4 λ wavelength wire antenna
• Carrier Frequencies: 21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29)

RF Output Power:

• 30 mW/5 mW selectable (UC, U, CE, LA, CN models)
• 10 mW/2 mW selectable (J, E, KR models)

• Capsule Type: Dynamic
• Directivity: Uni-directional
• Reference Audio Input level: –55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)
• Maximum Audio Input Level: 151 dB SPL (21 dB attenuation, using supplied microphone unit )
• Audio Attenuator Adjustment Range: 0 dB to 21 dB (3 dB steps)

Frequency Response:

• 70 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
• 70 Hz to 15 kHz (Typical) (J model)

Signal-to-Noise Ratio:

• 60 dB (–60 dBV, 1 kHz sine wave input ) 102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
• 96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)

• Distortion: 0.9% or less (–60 dBV, 1 kHz input )
• Audio Delay: Approx. 0.35 ms

Tone Signal Frequency:

• In UWP-D compander mode: 32.382 kHz
• In UWP compander mode: 32 kHz
• In WL800 compander mode: 32.768 kHz

• Display: OLED

Power Requirements:

• DC 3.0 V (two LR6/AA size alkaline batteries)
• DC 5.0 V (supplied from USB Type-C connector)

Battery life*:

• Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
• Approx. 10 hours with output power of 10 mW (J, E, KR models)

* Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).

• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage/Transport Temperature: –20 °C to +55 °C (–4 °F to +131 °F)
• Dimensions: ø48 x 258 mm (1 15/16 x 10 1/4 in.) (diameter / length)
• Mass: Approx. 255 g (9.0 oz) (excluding batteries)
