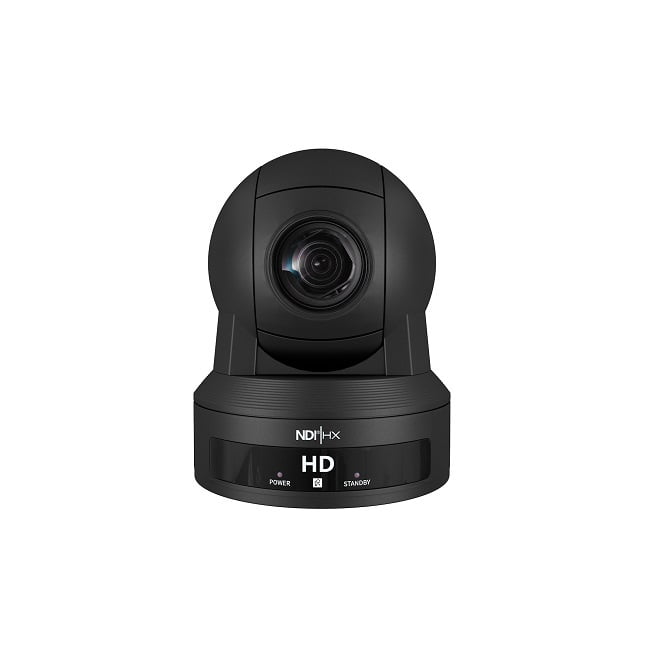

Katovision KT-HD61AN NDI-SDI-HDMI Video Conference Camera
specification Camera model | KT-HD61AN |
Image Sensor | 1/2.8″ Sony CMOS Sensor |
Effective Pixels | 3.50 Megapixels |
Resolution | 1080p60/50, 1080i60/50,1080i59.94, 1080p/30, 1080p/25 |
Signal System | PAL/NTSC |
Lens | 20X optical zoom |
Horizontal View Angle | 58.7°（W）～3.2°（T） |
Pan | 355°(max. speed:80°/s) |
Tilt | -30° to +90° (max. speed: 60°/s) |
Focus System | Auto/Manual |
S/N Ratio | ≥50db |
Preset Position | 9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC |
Minimum Illumination | 0.1Lux |
Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/Bright |
Shutter Speed | 1/1~1/10,00S |
Gain | Auto/Manual |
White Balance | Auto/Manual/ATW/One-click/Indoor/Outdoor |
Image Effect | Full color/black and white/Electronic flip |
Video Output HD | HDMI, 3G-SDI,USB2.0, IP (POE optional) |
Other Input | Line In |
Control Protocol | SONY VISCA, PELCO P/D |
Other Protocol | RTMP, RTSP, TCP/IP, HTTP, ONVIF, NDI®|HX |
Control Mode | RS-232C, RS-422/485 |
Power | 12 DC(10.8~13.0DC) |
Power Consumption | Max. 30W(DC 12V) |
Operating Temperature | 0~40℃ |
Storage Temperature | -20-60℃ |
Camera Dimension | （L）170×（W）151×（H）190mm |
Weight | 1320g |
Color | Black/White |
Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDMI cable, USB Cable , Ceiling bracket |
Certificate | ISO/CE/FCC/ROSH |
