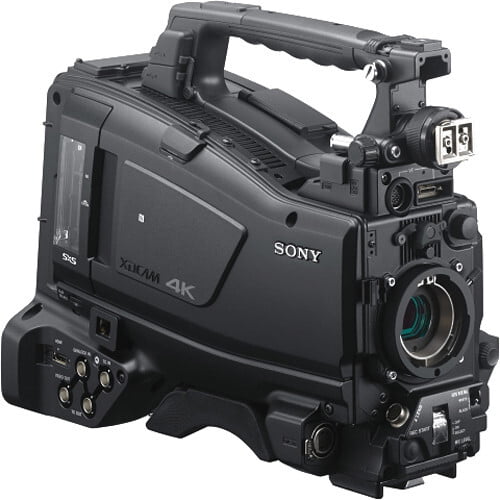

Sony PXW-Z450 4K UHD Shoulder Camcorder (Body Only)

Image Sensor

1-Chip 2/3" CMOS Sensor

Effective Sensor Resolution

3840 x 2160

Horizontal Resolution (TV Lines)

2000 TV Lines or More

Signal-to-Noise Ratio

61 dB

Minimum Illumination

0.019 Lux

Lens Mount

B4 Mount

Shutter Speed

1/2 to 1/2000 sec

Built-In ND Filter

Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Recording Media

2 x SxS Card Slots

Recording Modes

XAVC-I 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/59.94 fps (300 Mb/s)
1920 x 1080p at 23.98/25/29.97/59.94 fps (100 Mb/s)
XAVC-L 4:2:0 8-Bit:
3840 x 2160p at 23.98/25/29.97/59.94 fps (150 Mb/s)
1920 x 1080p at 23.98/25/29.97/59.94 fps (50 Mb/s)
MPEG-2 4:2:2:
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (50 Mb/s)

Variable Frame Rates

720p: 1 to 60 fps
1080p: 1 to 60 fps

IP Streaming

None

Video Connectors

1 x BNC (HD-SDI) Input
4 x BNC (3G-SDI) Output

Audio Connectors

2 x 3-Pin XLR (+48 V Phantom Power) Input
1 x 5-Pin XLR Input/Output
1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O

1 x RJ45 LAN
1 x 20-Pin Viewfinder
1 x 26-Pin Viewfinder
1 x 50-Pin
1 x 8-Pin Hirose Control
1 x 12-Pin Lens Control
2 x USB Type-A
1 x USB Type-B
1 x RJ45 LAN
1 x BNC Timecode Input
1 x BNC Genlock Input
1 x DE-15/DB-15 Wireless Receiver Input

Global Positioning

GPS

Display Type

Articulating LCD

Size

3.5"

Resolution

960 x 540

Secondary Display

Side: LCD Status Display

Power Connectors

1 x 4-Pin Hirose (11 to 17 VDC up to1.8 A) Output
1 x 2-Pin Light Output
1 x 4-Pin XLR (11 to 17 VDC) Input

Power Consumption

26 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Accessory Mount

None

Dimensions

6.69 x 10.59 x 13.07" / 170 x 269 x 332 mm

Weight

7.9 lb / 3.6 kg

Warranty Length

None

Package Weight

12.05 lb

Box Dimensions (LxWxH)

21.6 x 14.8 x 10"
