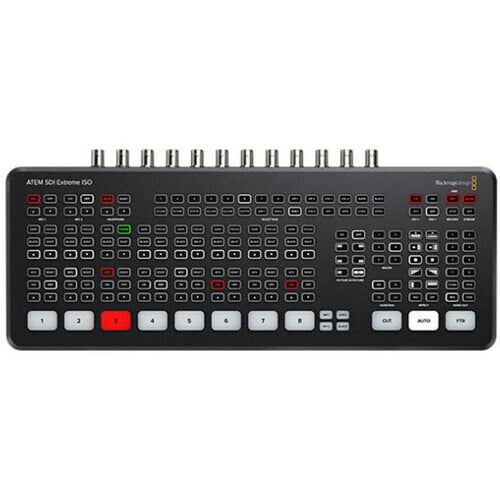

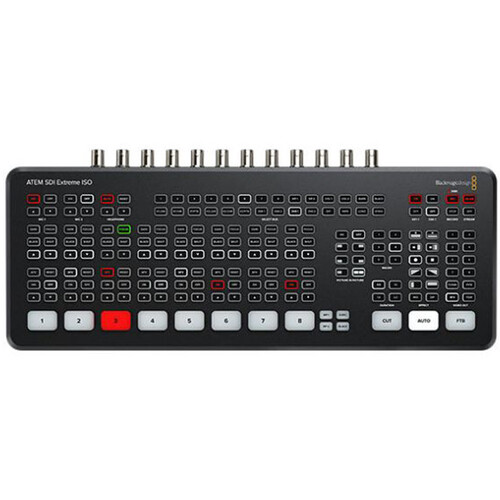

Blackmagic Design ATEM SDI Extreme ISO Switcher

Available M/E Layers

9 M/E

Effect Types

DVE, Transition, Chroma Key, Luma Key

Generators

5 x Pattern
2 x Color

Audio Mixing

2-Channel Mixing

Switching Type

IR Remote, Pushbutton, Software

Number of Video Input Sources

8

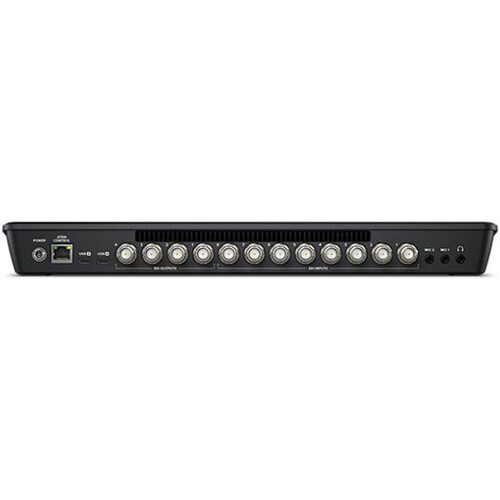

Video Input Connectors

8 x BNC (3G-SDI)

Input Video Format

SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 56/59.94/60 fps
720p at 50/59.94/60 fps

Audio Input Connectors

2 x 1/8" / 3.5 mm TRS Stereo Analog Female

Input Audio Format

Analog

Embedded Audio Input

SDI: 2-Channel (per Input)

Video Output Channels

6

Video Output Connectors

4 x BNC (3G-SDI) (Program)
2 x USB Type-C

Output Video Format

SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
USB Type-C (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

Audio Output Connectors

1 x 1/8" / 3.5 mm TRS Analog

Output Audio Format

Analog

Embedded Audio Output

SDI: 2-Channel (per Output)

Multiview Output

None

Other I/O

1 x RJ45 Control Input/Output

HDCP Support

None

IP Video

1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding

OS Compatibility

macOS 11
macOS 12 or Later
Windows 10
Windows 11
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility

Power Connector

1 x Barrel (12 VDC) Input

Power Consumption

Device: 36 W

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

14 to 140°F / -10 to 60°C

Operating Humidity

0 to 90% (Non-Condensing)

Dimensions

14.56 x 5.94 x 1.56" / 36.98 x 15.09 x 3.96 cm

Weight

3.13 lb / 1.42 kg
