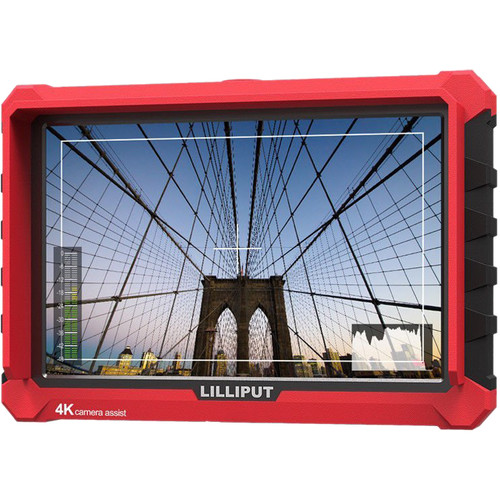

Lilliput A7S 7" Full HD Monitor with 4K Support (Black Case)
The A7S 7" Full HD Monitor with red rubber case from Lilliput features an HDMI 1.4 input, making it suitable for UHD 4K filmmaking and photography.
Specification
Lilliput A7S Specs
Display
Panel Type | IPS-Type LCD |
Display Size | 7.0" / 17.8 cm |
Active Area | 5.94 x 3.74" / 15.1 x 9.5 cm |
Screen Resolution | 1920 x 1200 |
Aspect Ratio | 16:10 |
Viewing Angle | Horizontal: 170° |
Touchscreen | No |
Maximum Brightness | 500 cd/m2 |
Contrast Ratio | 1000:1 |
Dot Pitch | 26.25 x 78.75 µm |
Pixels Per Inch (ppi) | 324 ppi |
Real-Time LUT Monitoring | No |
Image Controls | Color Temperature Selection, False Color, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, Screen Markers, Underscan |
I/O
Video | 1 x HDMI Type A (HDMI 1.4) Input |
Audio | 1 x 1/8" / 3.5 mm Headphone Input |
Built-In Speaker | 1 x 1 W |
Other I/O | None |
Card Slot | None |
Format Support
Video Format | HDMIRGB |
PC Resolutions | 3840 x 2160 |
Power
DC Input Power | 7 to 24 VDC |
Battery Type | None |
Power Consumption | 12 W (Maximum) |
Mounting
Mounting-Hole Pattern | 75 x 75 mm |
Mounting | 1 x 1/4"-20 Female |
Environmental
Operating Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% |
Storage Temperature | -22 to 158°F / -30 to 70°C |
General
Dimensions | 7.2 x 0.8 x 4.9" / 18.3 x 2 x 12.4 cm |
Weight | 11.3 oz / 320 g |
Packaging Info
Package Weight | 2.365 lb |
Box Dimensions (LxWxH) | 8.1 x 5.9 x 3.6" |
