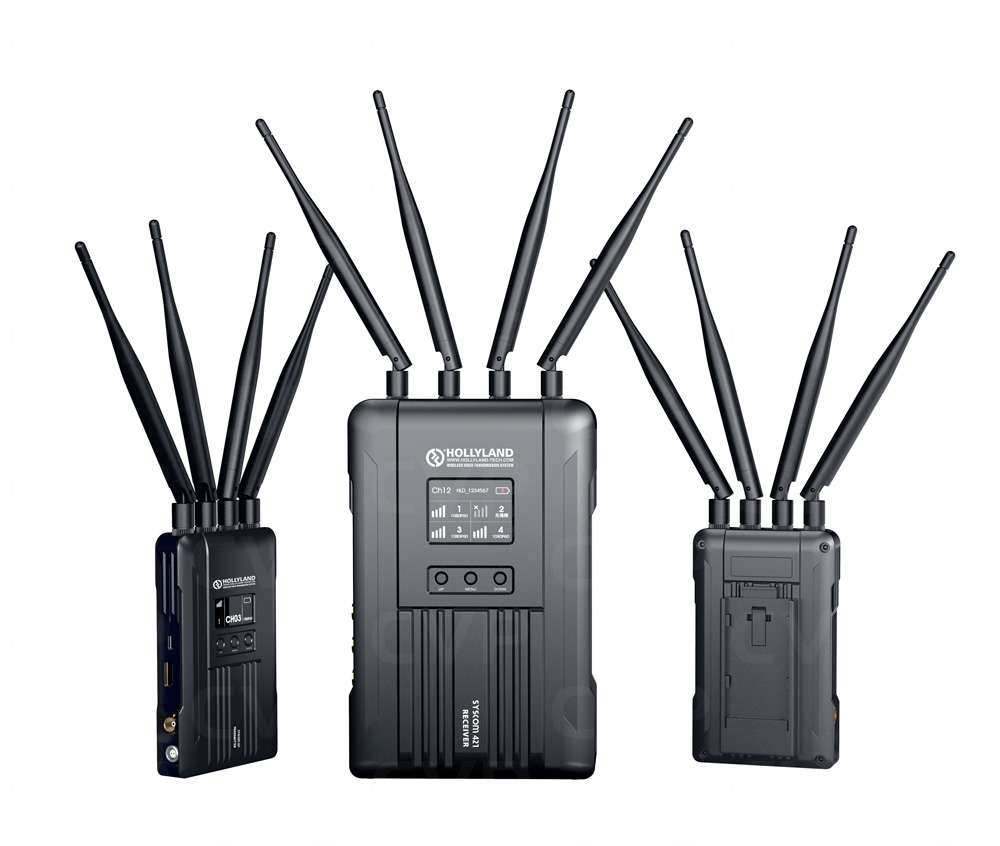

Hollyland "Syscom 421 (2 TX +1 RX)"
$5,999.00
Tags:
"Hollyland SYSCOM 421 is the wireless HD Video transmission system which can achieve 4 transmitters on the same RF Channel with strong anti- interference capability.
Product Details
SPECIFICATION
| Wireless | Wireless Range 1800' / 600 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | 5 GHz |
| Latency | 0.07 sec (The lowest latency) |
| RF Power | ≤ 22 dBm |
| RF Sensitivity | -90 dBm |
| Wi-Fi | Yes |
| Interfaces | |
| Transmitter Antenna Ports | 4 x RP-SMA Male |
| Receiver Antenna Ports | 4 x RP-SMA Male |
| Transmitter Video Connectors | 1 x BNC (3G-SDI / HD-SDI) Input, 1 x HDMI Input |
| Receiver Video Connectors | 4 x BNC (3G-SDI) Output, 4 x HDMI Output |
| Transmitter Other I/O | 1 x USB Type-C, 1×3-Segment 3.5mm TALLY Output, 1×DC Power Input, 1×RS485/RS422 Interface, 1×LAN Interface |
| Receiver Other I/O 1 x USB Type-C | 1×DC Power Input, 1×RS485/RS422 Interface, 1×LAN Interface |
| Embedded Audio | SDI, HDMI |
| Format Support | |
| Video Format | HDMI: 1080p at 24, 25, 30, 50, 59.94, 60 fps 1080i at 50, 60 fps 720p at 50, 60 fps 576p at 50 fps 480p at 60 fps SDI: 1080p at 24, 25, 30, 50, 60 fps 1080i at 50, 60 fps 720p at 50, 60 fps |
| Display | |
| Transmitter Panel Type | OLED |
| Receiver Panel Type | TFT |
| Power | |
| Transmitter Battery Support | 1 x Sony L-Series / NP-F Type |
| Receiver Battery Support | 1 x V-mount large capacity battery |
| Transmitter Power Connector | 1 x Barrel (7 to 36 VDC) Input |
| Receiver Power Connector | 1 x Barrel (18 to 36 VDC) Input |
| Transmitter Power Consumption | Device: (12 W) |
| Receiver Power Consumption | Device: (32 W) |
| General | |
| Transmitter Mounting | 1 x 1/4''-20 Female, 2×3/8''-16 Female |
| Receiver Mounting | 1 x 1/4''-20 Female, 2×3/8''-16 Female |
| Materials | Metal |
| Transmitter Dimensions | 3.46 x 1.18 x 5.67 / 8.8x 3 x 14.4 cm |
| Receiver Dimensions | 5.82 x 2.44 x 9.53 / 14.8 x 6.2x 24.2 cm |
| Transmitter Weight | 0.95lb / 431.5 g |
| Receiver Weight | 3.57 lb / 1621g |
