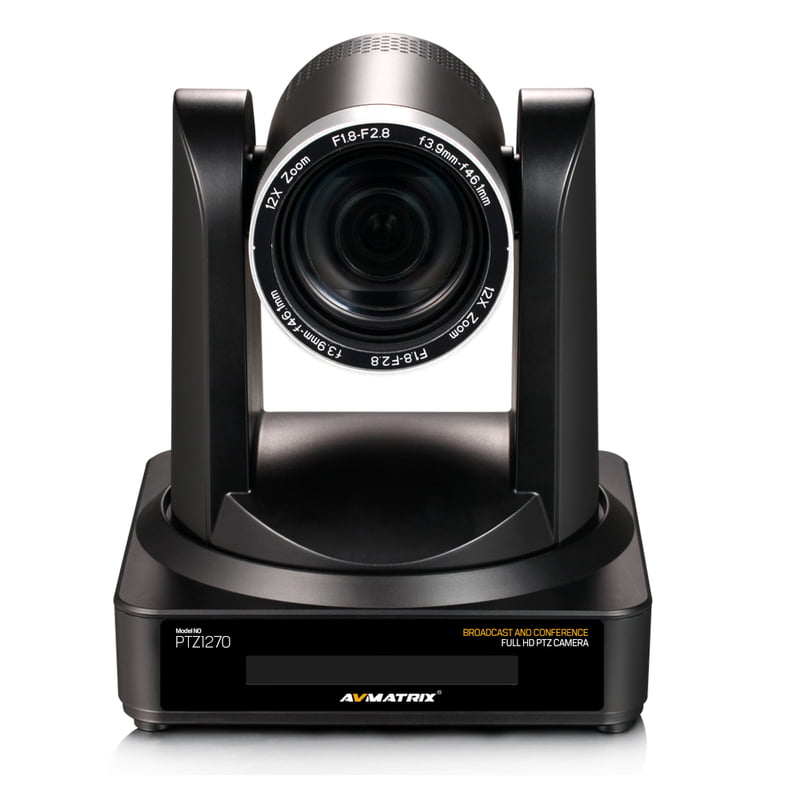

AVMATRIX PTZ1270 Full HD PTZ Camera with PoE & 20x Optical Zoom

Image Sensor

1-Chip 1/2.8" CMOS Sensor

Sensor Resolution

Effective: 2.07 Megapixel

Signal-to-Noise Ratio

55 dB

Minimum Illumination

0.5 Lux

White Balance

3000 to 6500K

Max Digital Zoom

10x

Built-In ND Filter

None

Optical Zoom Ratio

20x

Focal Length

5.2 to 98mm

Field of View

3.3 to 54.7°

Maximum Aperture

f/1.6 to 3.5

Focus Control

Autofocus

Output Formats

SDI, HDMI, RJ45: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps

IP Streaming

ONVIF, RTMP, RTSP: 1080p

Presets

255 via RS-232, VISCA
10 via IR

Move Speed

Pan: 0.1 to 180°/sec
Tilt: 0.1 to 80°/sec

Movement Range

Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)

Supported Control Protocols

Pelco-D
Pelco-P
VISCA

Video Output Connectors

1 x HDMI Type A (HDBaseT) Female
1 x BNC (3G-SDI) Female
1 x RJ45 (HX / NDI) Female

Audio I/O

1 x 1/8" / 3.5 mm Stereo Line Level Input

Control Interface

1 x RJ45 (Pelco-D, Pelco-P, VISCA)
1 x Mini-DIN 8-Pin (RS-232) Input
1 x Mini-DIN 8-Pin (RS-232) Output
1 x 2-Wire (RS-485)

PoE Support

Yes

Power Connectors

1 x Barrel / Coaxial (12 VDC at 1 A)

Operating Temperature

14 to 122°F / -10 to 50°C

Storage Temperature

14 to 140°F / -10 to 60°C

Operating Humidity

20 to 80%

Storage Humidity

20 to 95%

Tripod Mounting Thread

1 x 1/4"-20 Female

Dimensions

6.6 x 5.9 x 5.9" / 167.5 x 150 x 150 mm

Weight

3.08 lb / 1.4 kg

Package Weight

Box Dimensions (LxWxH)

10.8 x 9.7 x 9.2"
