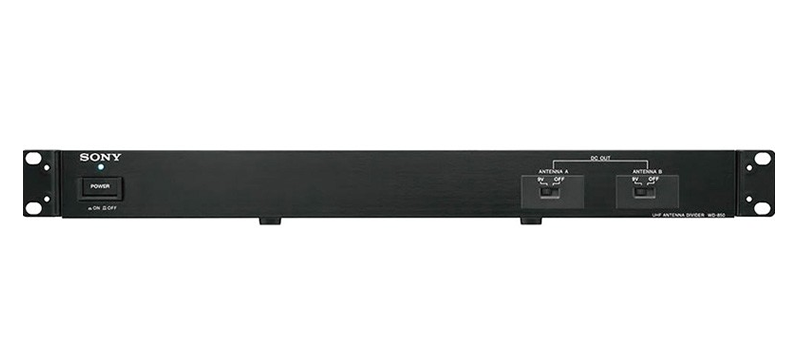

Sony WD-850A UHF Antenna Divider
Non-returnable
$2,500.25
Tags:
Sony WD-850A UHF Antenna Divider
- Provides diversity output for up to four receivers/tuner base units
- Multi-channel operation by combination with the MB-8N and WRU-8N or the MB-X6 and WRU-806B
- Cascade output can be used for an additional antenna-divider or receiver/tuner base unit
- Two pair of antenna input connectors for up to four AN-820A antennas to expand the operating area of a wireless microphone system
Product Details
Specification
Frequency range: | 470MHz - 862MHz |
Channel distribution: | Inputs: 2 pairs Outputs: 4 pairs |
Input/output impedance: | 50 |
Cascade output: | 1 pair |
Power supply for antenna booster (supplied from antenna input connectors): | DC 9 V/OFF switchable |
Power consumption: | 16 W |
Dimensions (W x H x D): | 482 x 44 x 300 mm (19 x 1 3/4 x 11 7/8 inches) |
Mass: | Approx. 4.6 kg (10 lb 2 oz) |
RF muting (squelch) level: | 5 dB, 10 dB, 15 dB or OFF |
Audio output level: | -58 dBm at reference deviation |
Audio output connector: | SMC9-4S (Sony 4-pin) (2), balanced |
