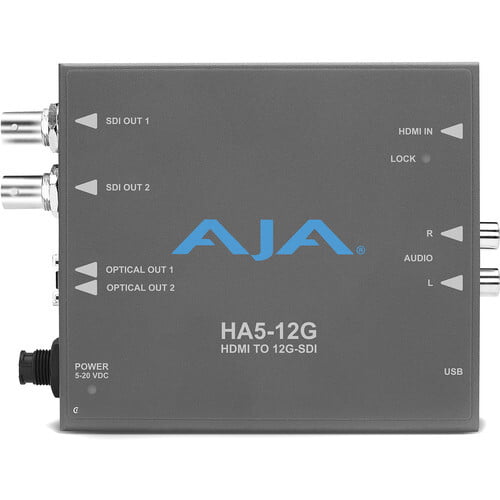

AJA HA5-12G HDMI 2.0 to 12G-SDI Converters

Video Formats

• (4K) 4096 x 2160p
• (UltraHD) 3840 x 2160p
• (2K) 2048 x 1080p
• (HD) 1920 x 1080p
• (HD) 1920 x 1080i
• (HD) 1280 x 720p
• (SD) 720 x 576p
• (SD) 720 x 576i
• (SD) 720 x 480p
• (SD) 720 x 480i

Note: Raster and Frame Rate Dependent, please see HA5-12G Video Formats in Documents and Manual

Video Input Digital

• 1x HDMI Type A connector, HDMI v2.0b
  • HDR Infoframe decoder as defined in CTA-861.3 and HDMI v2.0b
  • HDR VPID generation with pass-through or override for Colorimetry and Transfer Characteristic
  • YCbCr 4:2:2/4:4:4/4:2:0
  • RGB 4:4:4, SMPTE or Full level
  • 8, 10, or 12-bit (HFR 4K/UltraHD 4:4:4 limited to 8 bit)
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 720 x 576p 50
  • (SD) 720 x 576i 25
  • (SD) 720 x 480p 59.94
  • (SD) 720 x 480i 29.97

HDCP Decryption

• Not supported. By definition, SDI outputs are unencrypted.

Video Output Digital

• 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
  • YCbCr 4:2:2/4:4:4
  • RGB 4:4:4, SMPTE or Full level
  • 10-bit
• 1x 12G-SDI
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (Ultra HD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
• 1x 6 Gb SDI
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
  • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
  • (Ultra HD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
• 1x 3 Gb SDI (Level A or B-Dual Link)
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p** 50, 59.94, 60
• 1x 1.5 Gb SDI
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
• 1x 270 Mb SDI
  • (SD) 625i 50
  • (SD) 525i 59.94

**1280 x 720p is Level A Only

Video Output Digital - Additional for HA5-12G-T Only

• 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
  • Optical Power: -5 dBm (min), 0.5 dBm (max)
  • Extinction Ratio: 3.5 dB (min)

Video Output Digital - Additional for HA5-12G-T-ST Only

• 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
  • Optical Power: -5 dBm (min), 2 dBm (max)
  • Extinction Ratio: 3.5 dB (min)

Audio Pass-Through Formats

• PCM
• Dolby Digital (AC-3)
• Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)

Audio Input Digital

• HDMI embedded audio, 24-bit, 8-channel

Audio Input Analog

• 2x RCA style connector, 2-channel -10dBu (nominal)

Audio Output Digital

• SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel

User Interface

• USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows

Size (w x d x h)

• 4.6" x 4.02" x 0.9" (116.84 x 102.11 x 22.86 mm)

Weight

• 0.5 lb (0.3 kg)

Power

• 5-16VDC regulated, 11 watts, power supply required included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

*HA5-12G, HA5-12G-T and HA5-12G-T-ST each use approximately 12 watts of power and convection cooling. It will be warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the HA5-12G converters with other Mini-Converters.
