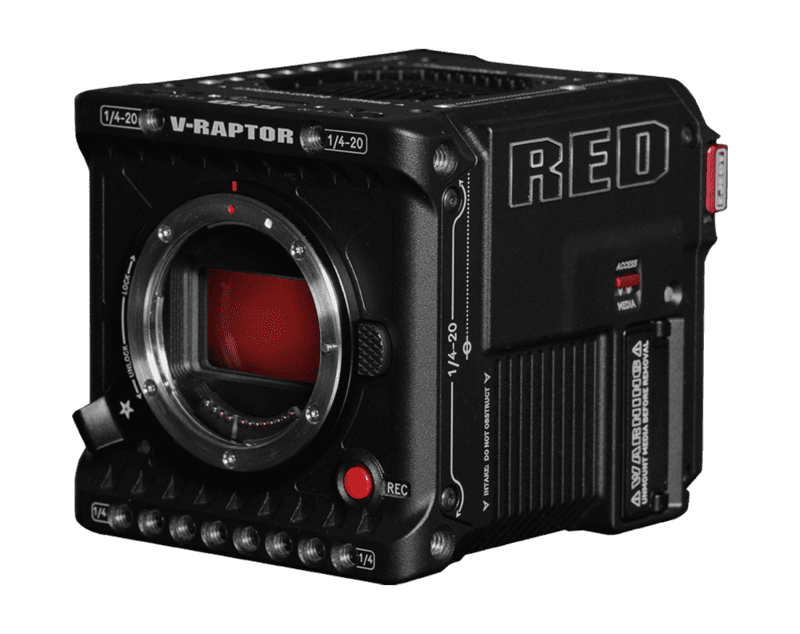

RED DIGITAL CINEMA V-RAPTOR 8K VV + 6K S35 Dual-Format DSMC3 Camera (Canon RF, Black)
$26,335.15
Tags:
V-RAPTOR™ 8K VV is the most powerful and advanced RED® cinema camera ever. As the brand’s new flagship system and sensor, as well as the first entrant into the new DSMC3™ generation of cameras, V-RAPTOR stands alone at the forefront of digital image capture technology.
Product Details
SPECIFICATION
| SENSOR TYPE | V-RAPTOR™ 8K VV 35.4 Megapixel CMOS |
|---|---|
| EFFECTIVE PIXELS | 8192 x 4320 |
| SENSOR SIZE | 40.96 mm x 21.60 mm (Diagonal: 46.31 mm) |
| DYNAMIC RANGE | 17+ stops |
| MOUNT TYPE | Integrated RF mount with RF lens support Supports Canon EF lenses via compatible Canon RF to EF mount adapters Accepts other Canon RF mount-based lens adaptors for diverse lens choices |
| MAX DATA RATES | Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1] |
| REDCODE® RAW MAX FRAME RATES | 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456) 140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024) 160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592) 192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160) 240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728) 320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296) 480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864) |
| BEST AVAILABLE REDCODE® SETTINGS | REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps |
| REDCODE® RAW ACQUISITION FORMATS | 8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x 7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x 5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1 4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1 3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1 2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1 |
| APPLE PRORES | Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096 x 2160) Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) |
| CONSTRUCTION | Aluminum Alloy |
| WEIGHT | 4.03 lbs (without body cap and CFexpress card) |
| BATTERY TYPE | Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1] |
| DC POWER INPUT | 11-17V via 6-pin DC-IN |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
| STORAGE RELATIVE HUMIDITY | 0% to 85% non-condensing |
| COLOR MANAGEMENT | Image Processing Pipeline 2 (IPP2) Supports 33×33×33 3D LUTs Supports import of CDLs |
| AUDIO | Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz |
| AUTOFOCUS | Contrast and Phase Detect |
| REMOTE CONTROL | Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload |
| MONITOR OUTPUTS | Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio |
| MONITOR OPTIONS | DSMC3™ RED® Touch 7.0” LCD Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing Integrated 2.4" LCD for camera control (no preview video) |
| RED CONTROL | Access full camera controls and live preview from iOS or Android devices Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C |
