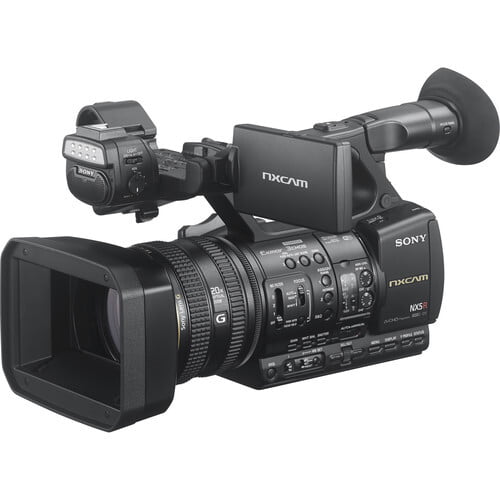

Sony HXR-NX5R NXCAM Professional Camcorder with Built-In LED Light

3-Chip 1/2.8" CMOS Sensor

Sensor Resolution

2.07 MP

Gain

-6 to 30 dB

Minimum Illumination

1.2 Lux at 1/30 Shutter Speed

White Balance Range

2300 to 15,000K

Focal Length

4.1 to 82mm

35mm Equivalent Focal Length

28.8 to 576mm

Optical Zoom Ratio

20x

Max Digital Zoom

40x

Maximum Aperture

f/1.6

Minimum Aperture

f/11

Filter Size

72 mm

Control Rings

Focus
Zoom

Image Stabilization

Digital

Focus Control

Autofocus
Manual Focus

Shutter Speed

1/3 to 1/10,000 sec

Built-In ND Filter

Mechanical Filter Wheel with 2 Stop (1/4), 3 Stop (1/8), 6 Stop (1/64) ND Filters

Built-In Microphone Type

Stereo

Recording Media

1 x SDXC/Memory Stick PRO Duo Hybrid Card Slot
1 x SDXC Card Slot

Recording Modes

XAVC S 4:2:0 8-Bit:
1920 x 1080p at 23.98/29.97/59.94 fps (50 Mb/s)
AVCHD 4:2:0 8-Bit:
1920 x 1080p at 23.98/29.97/59.94 fps (17 to 28 Mb/s)
1920 x 1080i at 59.94 fps (17 to 24 Mb/s)
DV:
720 x 576i at 59.94 fps (25 Mb/s)

Audio Recording

2-Channel

IP Streaming

FTP, FTPS, MPEG2, RTMP, UDP: 1920 x 1080

Video Connectors

1 x BNC (3G-SDI) Output
1 x HDMI Output
1 x BNC (Composite) Output

Audio Connectors

2 x 3-Pin XLR Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
1 x 1/8" / 3.5 mm Stereo Output

Other I/O

1 x 3.5 mm LANC Input
1 x USB Micro-B Output

Wireless Interfaces

2.4 GHz Wi-Fi Video Output, Audio Output

Display Type

LCD

Screen Size

3.5"

Screen Resolution

1,560,000 Dots

EVF Display Type

OLED

Screen Size

.39"

EVF Resolution

1,440,000 Dots

Battery Type

Sony L-Series

Power Connectors

1 x Barrel Input

Power Consumption

7.8 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Accessory Mount

1 x Multi-Interface Shoe

Tripod Mount

1/4"-20 Female

Built-In Light

Yes

Dimensions

15.3 x 7.9 x 7" / 38.86 x 20.07 x 17.78 cm

Weight

4.7 lb / 2.13 kg

Package Weight

9.7 lb

Box Dimensions (LxWxH)

16.6 x 13.2 x 9.6"
