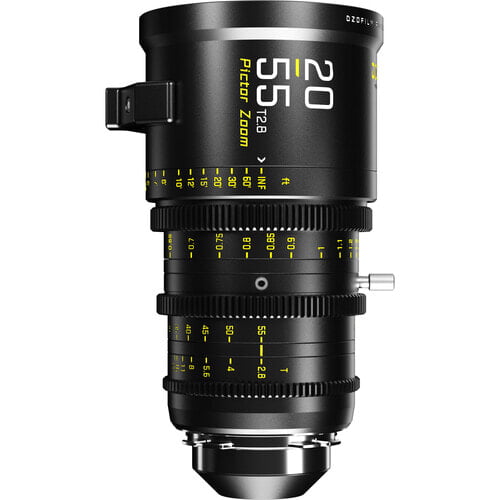

DZOFilm Pictor 20 to 55mm T2.8 Super35 Parfocal Zoom Lens (PL Mount and EF Mount)
A parfocal cine lens, the DZO Pictor 20 to 55mm T2.8 Super35 Parfocal Zoom Lens features a relatively fast maximum aperture of T2.8 with an aperture range of T2.8 to T22. As you would expect from a cinema-style zoom, the lens is parfocal, meaning it holds focus throughout the zoom range. The internal focus design with floating elements virtually eliminates focus breathing. It covers a Super35 image circle, comes standard with an interchangeable PL mount, and includes an EF mount.
Focal Length | 20 to 55mm |
Lens Mount | ARRI PL |
Lens Format Coverage | Super35/APS-C |
Image Circle | 31.1 mm |
Maximum Aperture | T2.8 |
Minimum Aperture | T22 |
Diaphragm Blades | 16 |
Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch |
Front Diameter | 95 mm |
Filter Thread | 86 mm |
Focus Scales | Imperial |
Zoom Ratio | 2.75x |
Electronic Communication | No |
Image Stabilization | No |
Lens Support | Lens Support Foot |
Length | 6.46" / 164 mm |
Weight | 3.35 lb / 1.52 kg |
Packaging Info
Package Weight | 2.7 kg |
Box Dimensions (LxWxH) | 13.1 x 7 x 7" |
