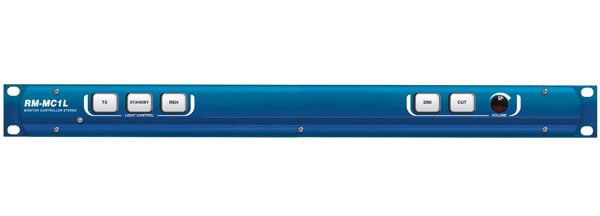

SONIFEX RM-MC1L Monitor Controller, Single Stereo Input & Output With Light Control
The RM-MC1L is a stereo unit with a single stereo balanced analogue input and output on XLRs. Useful in a production environment, the unit allows you to control the audio level to external monitors and to DIM the audio, or CUT it completely with simple front panel controls, or remote external inputs.
It has a master volume control that adjusts the attenuation on the output channels from 0dB down to -86dB. A CUT control mutes the audio outputs when enabled, whilst a DIM control attenuates the audio output channels by a pre-set amount from -2dB to -23dB.
Inputs |
|
Input Impedance: | >20kΩ |
Maximum Input Level: | +25dBu |
Output Impedance: | <50 Ω |
Maximum Output Level: | +25dBu |
Attenuation Range: | >86dB |
DIM Attenuation Range: | Adjustable -3dB to -23dB via rear panel potentiometer |
Common Mode Rejection: | >66dB typical |
Distortion: | <0.04% ref +8dBu |
Crosstalk: | <-80dB @ 1kHz input, ref 0dBu |
|
|
Front Panel Operation Controls | |
Light Control (All units): | Transmit (TX), Standby & Rehearse (REH) illuminated buttons |
Audio Controls: | Dim & Cut illuminated buttons |
Volume Control: | Rotary potentiometer for output attenuation on front panel |
|
|
Rear Panel Connections | |
Audio Inputs: | 2 x XLR 3-pin female (balanced) |
Audio Outputs: | 2 x XLR 3-pin male (balanced) |
Remote I/O Port: | 15 way D-type socket |
Mains Input: | Filtered 3-pin IEC male, continuously rated 85-264VAC, 47-63Hz, fused |
Fuse Rating: | Anti-surge fuse 1A, 20 x 5mm |
|
|
Equipment Type | |
RM-MC1L: | Monitor controller, single stereo input & output with light control |
|
|
Physical Specification | |
Dimensions (Raw): | 48cm (W) x 10.8cm (D) x 4.3cm (H) |
Dimensions (Boxed): | 58.5cm (W) x 22.5cm (D) x 7cm (H) |
Weight : | Nett: 1.3kg Gross: 1.9kg |
