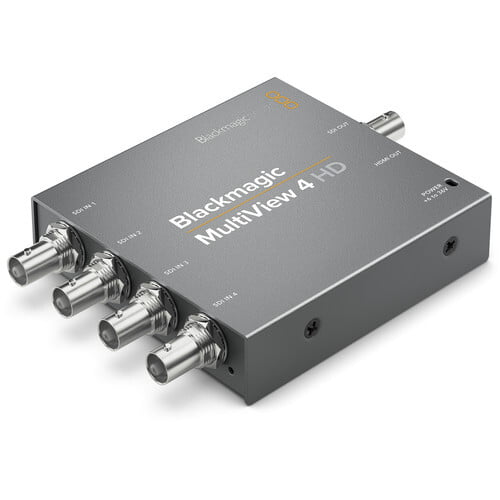

Blackmagic Design MultiView 4 HD
The Blackmagic Design MultiView 4 HD is a compact mini-converter that enables you to display up to four separate SDI streams via its HDMI or 10-bit SDI multiview outputs.
Specification
Interfaces
Input Connectors | 4 x BNC (3G-SDI) |
Output Connectors | 1 x BNC (3G-SDI) |
Standards
Video Standard Compliance | SMPTE 259M/292M/296M/310M/425M-B |
Transmission
Video Format | SDI (10-Bit 4:4:4/4:2:2 RGB, YUV) |
Max Sample Rate/Resolution | 48 kHz / 24-Bit |
CPU
OS Compatibility | macOS 10.12 |
Power
Power Consumption | 6 to 36 VDC (5.5 W) |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General
Dimensions | 4.8 x 3.1 x 1.2" / 123.0 x 79.5 x 29.5 mm |
Weight | 8.53 oz / 0.24 kg |
