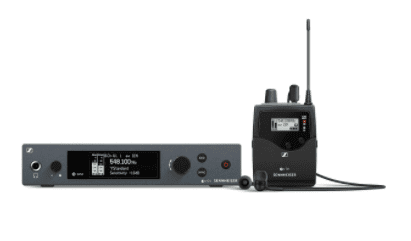

Sennheiser ew IEM G4 Wireless Monitor System (A1: 470 to 516 MHz)

Frequency range

A: 516 - 558 MHz

A1: 470 - 516 MHz

AS: 520 - 558 MHz

B: 626 - 668 MHz

C: 734 - 776 MHz

E: 823 - 865 MHz

G: 566 - 608 MHz

GB: 606 - 648 MHz

D: 780 - 822 MHz

Dimensions

Approx. 202 x 212 x 43 mm

Compander

Sennheiser HDX

THD, total harmonic distortion

<0.9 %

Weight

Approx. 980 g

Audio input

2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced

Audio output

¼" (6.3 mm) stereo jack socket, balanced

Signal-to-noise ratio

>90 dB

RF output power

switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

Switching bandwidth

up to 42 MHz

Peak deviation

±48 kHz

Nominal deviation

±24 kHz

Modulation

Wideband FM stereo (MPX pilot tone)

Power supply

12 V DC

Current consumption

max. 350 mA

Max. Input voltage

+22 dBu

Transmission frequency

Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels

AF frequency response

25 Hz to 15 kHz

Temperature Range

-10 °C to +55 °C

Frequency stability

±10 ppm

Antenna Output

BNC socket, 50 Ω

Frequency range

748.3 MHz - 757.7 MHz

Frequency range

Sr iem g4:

D: 780 - 822 MHz

EK IEM G4

Dimensions

Approx. 82 x 64 x 24 mm

Compander

Sennheiser HDX

THD, total harmonic distortion

≤ 0.9 %

Weight

(incl. batteries) approx. 125 g

Signal-to-noise ratio

approx. 90 dBA

Switching bandwidth

up to 42 MHz

Peak deviation

±48 kHz

Nominal deviation

±24 kHz

Operating time

approx. 4 to 6 hours (depending on volume level)

Modulation

Wideband FM

Power supply

2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption

at nominal voltage: approx. 140 mA

with transmitter switched off: ≤ 25 µA

Adjacent channel rejection

Typically ≥ 65 dB

Audio-Output-Power

2 x 100 mW at 32 Ω

Intermodulation attenuation

Typically ≥ 70 dB

Limiter

–18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off

Powering

3 V battery / 2.4 V rechargeable battery

Receiving frequency

Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels

RF sensitivity

< 4 μV, typ. 1.6 μV for 52 dBA rms S/N

Squelch

5 to 25 dBµV, adjustable in steps of 2 dB

Bass Boost

+8 dB at 8 kHz

Temperature Range

-10 °C to +55 °C

Receiver Principle

Adaptive diversity

Blocking

≥ 80 dB
