Rokinon / Samayang Xeen 14, 16, 24, 35, 50, 85, 135mm Cine 7 Lens Bundle (Sony E)

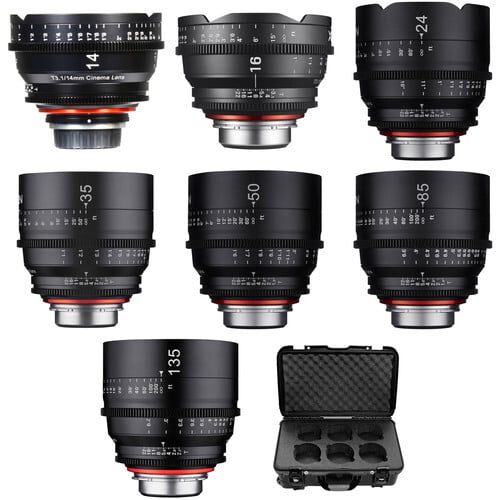

This B&H Kit of seven Xeen Cinema Lenses includes the 14, 16, 24, 35, 50, 85, and 135mm lenses. This provides you with a full, color-matched set of lenses that cover full frame and are fitted with Sony E-mounts.
Specification

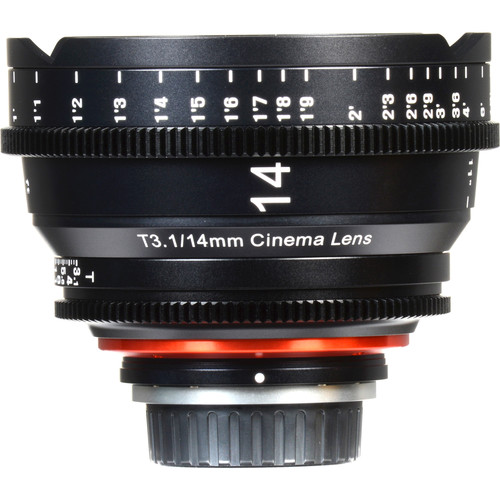

Focal Length | 14mm |
Lens Mount | Sony E |
Format | Full Frame |
Maximum T-Stop | T3.1 |
Diagonal Angle of View | Super35: 98.2° |
Minimum Focus Distance from Image Plane | 11.0" / 27.9 cm |
Iris Blades | 9 |
Focus Rotation | 200° |
Iris Rotation | 300° |
Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm |
Length | 4.5" / 113.7 mm |
Weight | 41.4 oz / 1.2 kg |
Packaging Info
Package Weight | 3 lb |
Box Dimensions (LxWxH) | 10.3 x 7.9 x 7.7" |

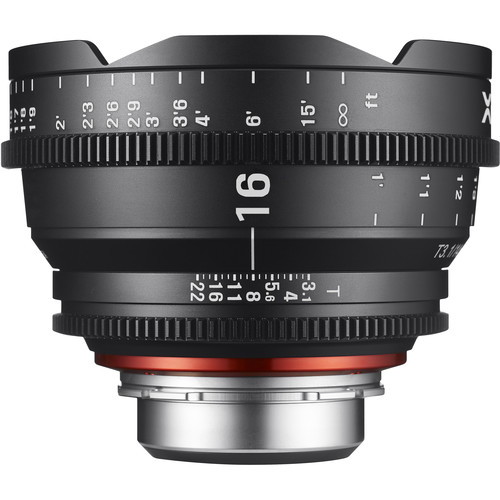

Rokinon Xeen 16mm T2.6 Lens (Sony E) Specs
Focal Length | 16mm |
Lens Mount | Sony E |
Format | Full Frame |
Maximum T-Stop | T2.6 |
Minimum T-Stop | T22 |
Diagonal Angle of View | MFT: 66.86° |
Minimum Focus Distance from Image Plane | 11.8" / 30 cm |
Iris Blades | 11 |
Focus Rotation | 200° |
Iris Rotation | 32.5° |
Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm |
Length | 4.78" / 121.3 mm |
Weight | 2.6 lb / 1.2 kg |
Packaging Info
Package Weight | 4.9 lb |
Box Dimensions (LxWxH) | 10.4 x 7.7 x 7.6" |

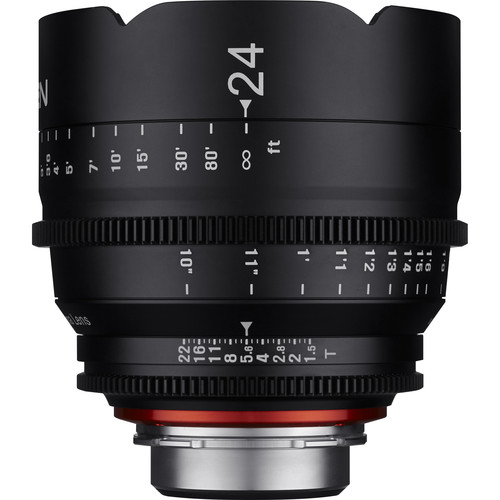

Rokinon Xeen 24mm T1.5 Lens For Sony E-Mount Specs
Focal Length | 24mm |
Lens Mount | Sony E |
Format | Full Frame |
Maximum T-Stop | T1.5 |
Minimum T-Stop | T22 |
Diagonal Angle of View | Super35: 61.2° |
Minimum Focus Distance from Image Plane | 10" / 25 cm |
Optical Design | 13 Elements in 12 Groups |
Iris Blades | 11 |
Focus Rotation | 200° |
Iris Rotation | 40° |
Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm |
Length | 5.8" / 147.7 mm |
Weight | 41.8 oz / 1.2 kg |
Packaging Info
Package Weight | 4.03 lb |
Box Dimensions (LxWxH) | 9 x 6.85 x 6.85" |

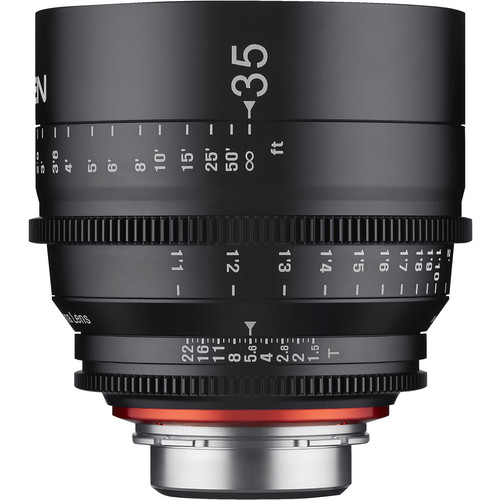

Rokinon Xeen 35mm T1.5 Lens For Sony E-Mount Specs
Focal Length | 35mm |
Lens Mount | Sony E |
Format | Full Frame |
Maximum T-Stop | T1.5 |
Diagonal Angle of View | Super35: 46.9° |
Minimum Focus Distance from Image Plane | 13.0" / 33.0 cm |
Iris Blades | 11 |
Focus Rotation | 200° |
Iris Rotation | 300° |
Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm |
Length | 5.8" / 147.7 mm |
Weight | 48.7 oz / 1.4 kg |
Packaging Info
Package Weight | 4.4 lb |
Box Dimensions (LxWxH) | 10.3 x 7.8 x 7.6" |
Rokinon Xeen 50mm T1.5 Lens For Sony E-Mount Specs
Focal Length | 50mm |
Lens Mount | Sony E |
Format | Full Frame |
Maximum T-Stop | T1.5 |
Minimum T-Stop | T22 |
Diagonal Angle of View | Super35: 31.2° |
Minimum Focus Distance from Image Plane | 1.5' / 0.45 m |
Optical Design | 9 Elements in 6 Groups |
Iris Blades | 11 |
Tripod Mounting Thread | 1/4"-20 Female |
Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm |
Length | 5.8" / 147.7 mm |
Weight | 41.1 oz / 1.2 kg |
Packaging Info
Package Weight | 3.9 lb |
Box Dimensions (LxWxH) | 10.2 x 7.7 x 7.7" |
Rokinon Xeen 85mm T1.5 Lens For Sony E-Mount Specs
Focal Length | 85mm |
Lens Mount | Sony E |
Format | Full Frame |
Maximum T-Stop | T1.5 |
Minimum T-Stop | T22 |
Diagonal Angle of View | Super35: 19° |
Minimum Focus Distance from Image Plane | 3.6' / 1.1 m |
Optical Design | 9 Elements in 7 Groups |
Iris Blades | 11 |
Tripod Mounting Thread | 1/4"-20 Female |
Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm |
Length | 5.8" / 147.7 mm |
Weight | 44.1 oz / 1.2 kg |
Packaging Info
Package Weight | 4.95 lb |
Box Dimensions (LxWxH) | 10.1 x 7.7 x 7.6" |
Rokinon Xeen 135mm T2.2 Lens With Sony E-Mount Specs
Focal Length | 135mm |
Lens Mount | Sony E |
Format | Full Frame |
Maximum T-Stop | T2.2 |
Minimum T-Stop | T22 |
Diagonal Angle of View | Super35: 12.4° |
Minimum Focus Distance from Image Plane | 2.6' / 79.2 cm |
Iris Blades | 11 |
Front Diameter | 114 mm |
Filter Thread | None |
Tripod Mounting Thread | 1/4"-20 Female |
Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm |
Length | 4.8" / 121.7 mm |
Packaging Info
Package Weight | 4.7 lb |
Box Dimensions (LxWxH) | 10.2 x 7.8 x 7.7" |
Rokinon XEEN 6-Lens Carry-On Case SpecsCarrying / Transport Options
Handle
Pull Handle
Wheels
Case Type
Hard
Type of Closure
Latch
Exterior Material
Resin
Interior
Custom-Cut Foam
Certifications
Mil-std-810f/IP67/ASTM D4169/ATA 300 Rated
Exterior Dimensions
22 x 14 x 9" / 55.88 x 35.56 x 22.86 cm
Weight
11.6 lb / 5.26 kg
Packaging Info
Package Weight
14.55 lb
Box Dimensions (LxWxH)
22.8 x 14.1 x 9.6"
Carrying / Transport Options
Handle
Pull Handle
Wheels
Case Type
Hard
Type of Closure
Latch
Exterior Material
Resin
Interior
Custom-Cut Foam
Certifications
Mil-std-810f/IP67/ASTM D4169/ATA 300 Rated
Exterior Dimensions
22 x 14 x 9" / 55.88 x 35.56 x 22.86 cm
Weight
11.6 lb / 5.26 kg
Package Weight
14.55 lb
Box Dimensions (LxWxH)
22.8 x 14.1 x 9.6"
