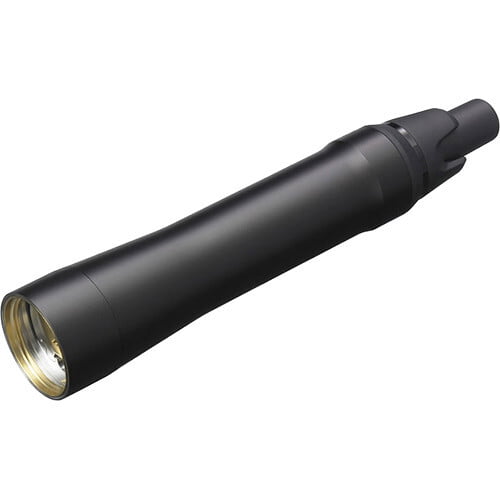

Sony DWM-02N/33 (DWM02N) DWX N-Series Digital Wireless Microphone with Interchangeable Head Mechanism
DVM-02N forms part of DWX N series digital wireless microphone system, working with the DWT-B01N body-pack transmitter and DWT-R02N receiver.
Specification
Wireless Interface: WiDIF-HP
Oscillator Type: Crystal-controlled PLL Synthesizer
Antenna Type: λ/4 flexible wire
Type of Emission: G1E or G1D
Carrier Frequencies - Europe:
- CE21: 470.025 MHz to 542.000 MHz (TV-21 to TV-29 channels) 25 kHz steps
- CE33: 566.025 MHz to 630.000 MHz (TV-33 to TV-40 channels), 25 kHz steps
- CE42: 638.025 MHz to 710.000 MHz (TV-42 to TV-50 channels), 25 kHz steps
RF Power: 1 mW/10 mW/50 mW (e.r.p) selectable
Maximum Input Level: –16 dBu (with 0 dB attenuator)
Audio Attenuator Adjustment Range: 0 dB to 21 dB (in 3-dB steps)
Frequency Response: Transmission: 20Hz to 22kHz (typical)
Audio Delay: MODE1: 1.5 msec (total: 3.4msec) /MODE2: 1.0 msec (total: 1.5msec)/MODE3: 2.1 msec (total 4.0msec)
Wireless Remote Control: Cross Remote (2.4-GHz IEEE802.15.4 compliant)
Display: OLED
Power Requirements: DC 3.0 V (with two AA-size alkaline (LR6) batteries)
Battery Operating Time: Approx. 5 hours with Sony's AA-size alkaline (LR6) batteries at 25℃(77°F) at 10-mW output
(with the wireless remote control function off and DIMMER MODE set to AUTO OFF)
Operating Temperature: 0°C to 50°C / 32°F to 122°F
Storage/Transport Temperature: -20°C to +60°C / -4°F to +140°F
Dimensions: Φ37.1 x 194 mm
Mass: Approx. 235 g (including batteries)
