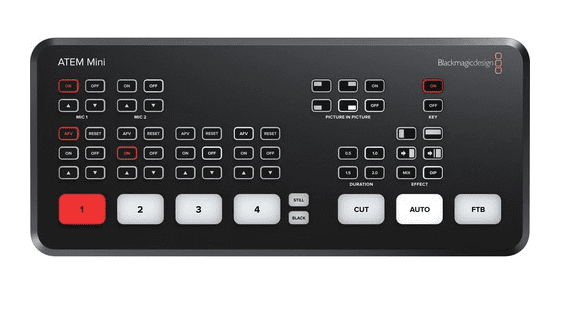

Blackmagic Design ATEM Mini HDMI Live Stream Switcher

Inputs

4 x HDMI Type A
2 x 3.5 mm Stereo Analog Audio
1 x RJ45 Ethernet

Outputs

1 x HDMI
1 x USB Type-C (Computer/Webcam)

Video Input Formats

HDMI Video:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50

HDMI Resolutions for Computers:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50

Video Output Formats

1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98

Video Sampling

4:2:2 YUV

Color Precision

10-Bit

Color Space

Rec. 709

Color Space Conversion

Hardware-Based, Real Time

Embedded Audio

2-Channel Input and Output

Audio Mixer

6-Input, 2-Channel

Media Player

1 x Player with Fill and Key

Still Image Capacity

20

Image Format Support

PNG, TGA, BMP, GIF, JPEG, TIFF

Keyers

1 x Upstream
1 x Downstream
1 x Advanced Chroma
2 x Linear/Luma
1 x Transition (DVE Only)

Layers

Up to 4

Generators

1 x Pattern
2 x Color

DVE

1 x Border and Drop Shadow

Monitor Resolution

1366 x 768 or Greater

Number of Windows

10

Operating System Support

Apple macOS 10.13, 10.14, or Later
Windows 10

Power Input

1 x Barrel

Voltage

12 V

Power Draw

18 W

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

14 to 140°F / -10 to 60°

Relative Humidity

0 to 90% Non-Condensing

Dimensions

9.4 x 4.1 x 1.4" / 23.8 x 10.4 x 3.6 cm

Weight

19.4 oz / 550 g
