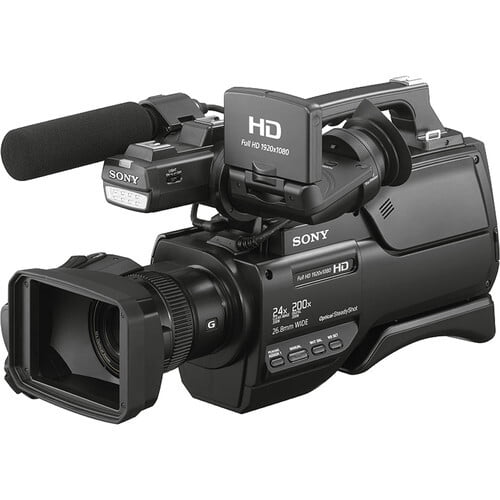

Sony HXR-MC2500 Shoulder Mount AVCHD Camcorder

Image Sensor

1-Chip 1/4" CMOS Sensor

Sensor Resolution

6.59 MP

Effective Sensor Resolution

6.14 MP

Gain

0 to 33 dB

Minimum Illumination

0.8 Lux at 1/15 Shutter Speed

White Balance Range

2300 to 15,000K

Focal Length

2.9 to 34.8mm

35mm Equivalent Focal Length

26.8 to 321.6mm

Optical Zoom Ratio

12x

Max Digital Zoom

200x

Maximum Aperture

f/1.8 to 3.4

Minimum Focusing Distance

Entire Zoom Range: 31.5" / 80.0 cm
Macro: 0.4" / 1.0 cm

Filter Size

37 mm

Image Stabilization

Optical

Focus Control

Autofocus
Manual Focus

Shutter Speed

1/6 to 1/10,000 sec

Built-In ND Filter

None

Built-In Microphone Type

Stereo

Recording Media

1 x SDXC Card Slot

Internal Storage

32 GB

Broadcast System Compatibility

NTSC

Recording Modes

AVCHD:
1920 x 1080p at 24/30/60 fps (17 to 28 Mb/s)
1920 x 1080i at 59.94 fps (24 Mb/s)

Audio Recording

2-Channel 16-Bit 48 kHz

Video Connectors

1 x BNC (Composite) Output
1 x HDMI Output

Audio Connectors

1 x Stereo 2RCA Output
1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O

1 x 2.5 mm LANC Control
1 x USB Mini-B

Wireless Interfaces

2.4 GHz Wi-Fi

Display Type

LCD

Screen Size

3"

Screen Resolution

921,000 Dots

EVF Display Type

OLED

Screen Size

.39"

EVF Resolution

1,440,000 Dots

Power Consumption

3.3 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Accessory Mount

1 x Multi-Interface Shoe
2 x Cold Shoe Mount

Built-In Light

Yes

Dimensions

10.4 x 9.3 x 6.1" / 265 x 235 x 155 mm
2.6 x 9.4 x 18.1" / 65 x 240 x 460 mm (With Protrusions)

Weight

6.8 lb / 3.1 kg

Package Weight

11.85 lb

Box Dimensions (LxWxH)

21 x 13 x 12.5"
