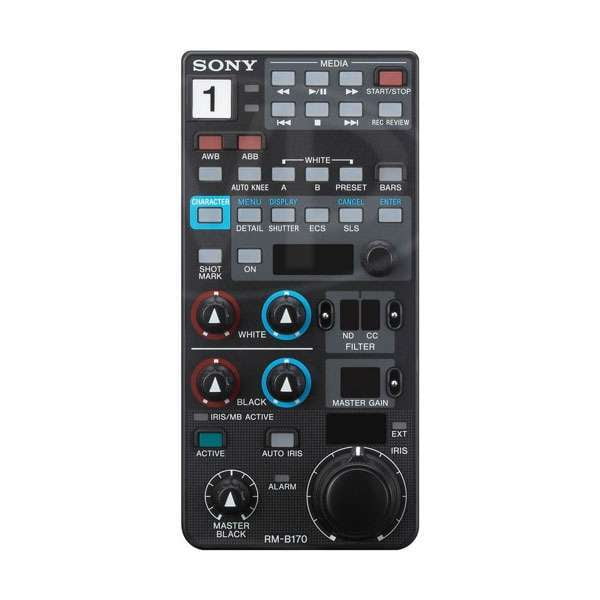

Sony - RM-B170SYM - Remote Control Unit
The RM-B170 remote control unit is the successor to the RM-B150. It provides an even more affordable solution for basic remote camera operations, with added features, including the remote control of media and the operation of clips of non-linear media.
Specifications
Dimensions (WxDxH) | 8.6 cm x 17.9 cm x 6.4 cm |
Weight | 0.47 kg |
Power requirements | 10.5 V to 30 V DC (supplied from the camera) |
Power consumption | 3 W |
Maximum cable length | 100 m (328 feet) |
Operating temperature | –20 °C to +45 °C (–4 °F to +113 °F) |
Storage temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
Inputs/Outputs | |
CAMERA | 8-pin multiconnector (1) |
MONITOR | BNC (1) |
EXT I/O | D-sub 9-pin (1) |
