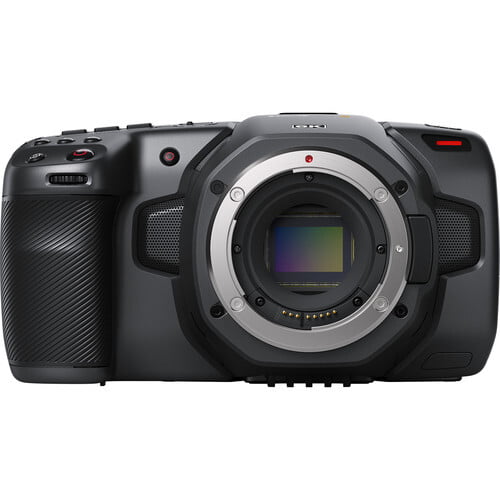

Blackmagic Design Pocket Cinema Camera 6K Body Only

Sensor Size

23.1 x 12.99 mm (Super35)

Sensor Type

CMOS

Sensor Resolution

Effective: 21.2 Megapixel (6144 x 3456)

Shutter Type

Rolling Shutter

ISO

100 to 25,600 (Expanded)

Advertised Dynamic Range

13 Stops

Lens Mount

Canon EF

Lens Communication

Yes

Built-In ND Filter

None

Built-In Microphone Type

Stereo

Variable Frame Rates

Up to 120 fps

Raw Recording

Raw:
6144 x 3456 at 23.98/24/25/29.97/30/50 fps (49 to 483 MB/s)
6144 x 2560 at 23.98/24/25/29.97/30/50/59.94/60 fps (37 to 359 MB/s)
5744 x 3024 at 23.98/24/25/29.97/50/59.94/60 fps (40 to 395 MB/s)

Recording Modes

ProRes 422HQ:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (24.25 to 117.88 MB/s)
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (22.4 to 110 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (27.5 MB/s)
ProRes 422:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (78.63 MB/s)
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (73.6 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (18.4 MB/s)
ProRes 422LT:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (54.63 MB/s)
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (51 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (12.75 MB/s)
ProRes 422 Proxy:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (24.25 MB/s)
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (22.4 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (5.6 MB/s)

Video Output

4:2:2 10-Bit via HDMI:
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

Raw Output

USB:
6144 x 3456 at 23.98/24/25/29.97/30/50 fps
6144 x 2560 at 23.98/24/25/29.97/30/50/59.94/60 fps
5744 x 3024 at 23.98/24/25/29.97/30/50/59.94/60 fps

Video Connectors

1 x HDMI Output

Audio Connectors

1 x Mini XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O

1 x USB Type-C Video Output
1 x 3.5 mm Timecode Input (Shared with 3.5 mm Mic/Line input)

Wireless Interfaces

Bluetooth Control

Display Type

Fixed Touchscreen LCD

Size

5"

Resolution

1920 x 1080

EVF

Optional, Not Included

Battery Type

Canon LP-E6

Power Connectors

1 x Weipu SF610/S2 Input

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

Accessory Mount

1 x 1/4"-20 Female

Tripod Mounting Thread

1/4"-20 Female

Material of Construction

Carbon Fiber

Dimensions

7 x 4 x 3.8" / 177.8 x 101.6 x 96.52 mm

Weight

1.98 lb / 898 g
