Blackmagic Design Resolve Advanced Panel
ngshop.co.
0
Currency
DaVinci Resolve Advanced Panel

Blackmagic Design Resolve Advanced Panel

Non-returnable
$27,585.00

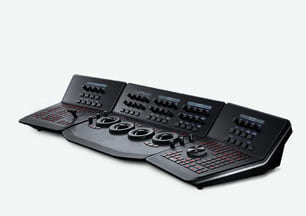

The DaVinci Resolve Advanced Panel from Blackmagic Design is a significant step up in functionality from the Micro or Mini panel. It consists of a main console and two auxiliary consoles, one on each side, as well as a slide-out keyboard in the center console.

Quantity
Add to Cart
Product Details

Designed with three ergonomically connected control surfaces and a pull out keyboard, DaVinci Resolve Advanced Panel gives you complete command of every color grading session! Each correction control has a separate soft key, knob, high resolution weighted trackball or ring so you can experiment quicker to create a wider range of looks!



Connections

Computer Interface

USB Type‑B connector on each panel.

USB Loop Out

2 x loop out USB Type‑A connectors for side panels.

USB Hub

2 x USB Type‑A connectors for a mouse and other USB devices.

Software Updates

USB Type Mini‑B connectors on each panel for factory software updates.

12V Power Input

Centre 3‑pin 3W3 D‑Sub connector on Trackball Panel.

3‑pin 3W3 D‑Sub connector on the Search Dial and T‑bar Panels.

12V Power Output

Left and right 3‑pin 3W3 D‑Sub connectors on Trackball Panel.

DaVinci Resolve Advanced Panel

Power Requirements

Power Supply

External 100 - 240V AC 1.5A 50/60Hz with IEC C14 mains input.

Power Usage

80W max.

Operating Systems

Mac icon

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows Icon

Windows 10 Creators Update
Windows 11

Rocky Linux icon

Rocky Linux 8.6

Physical Specifications

DaVinci Resolve Advanced Panel

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing

What's Included

DaVinci Resolve Advanced Trackball Panel

DaVinci Resolve Advanced Search Dial Panel

DaVinci Resolve Advanced T-bar Panel

DaVinci Resolve Advanced Panel Dongle

DaVinci Resolve Studio Activation Key

12V Power Supply with IEC C14 Mains Inlet

2 x 1m 3‑pin Inter Panel Power Cables

3 x 2m USB Type‑A to Type‑B Cables

Warranty

1 Year Limited Manufacturer’s Warranty.
