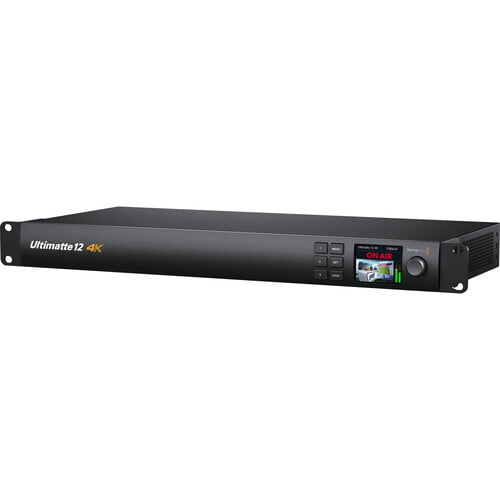

Blackmagic Design Ultimatte 12 4K

SDI Compliance

SMPTE 259, 424, 2081, 2082

Video Standards

UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080psf: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
NTSC: 525i 59.94
PAL: 625i 50

Video Sampling

4:2:2

Color Precision

10-Bit

Color Space

USB I/O

1 x USB-C Female Input

Video I/O

7 x BNC (12G-SDI) Input
7 x BNC (12G-SDI) Loop Output
1 x BNC Input
7 x BNC Output

SDI Rate

Multi-Rate Support: 270 Mb, 1.5, 3, 6, 12 Gb/s

Ethernet

1 x RJ45

Reference Input

1 x BNC

Reference Output

1 x BNC

GPIO

1 x DB15

Power Source

AC Input

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Power Consumption

50 W

Redundant Power

2 x IEC (Male)

Operating Temperature

32 to 104°F / 0 to 40°C

Operating Humidity

0 to 90% (Non-Condensing)

Storage Temperature

-4 to 140°F / -20 to 60°C

Storage Humidity

0 to 90% (Non-Condensing)

Mounting

1 x Rack Unit

Color

Black

Material of Construction

Metal

Dimensions

19 x 9.25 x 1.73" / 48.3 x 23.5 x 4.39 cm

Weight

5.84 lb / 2.65 kg
