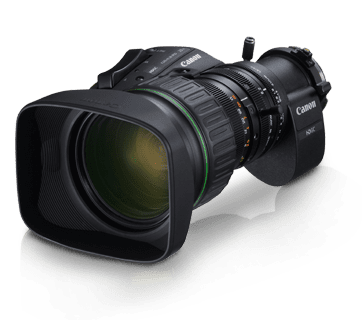

Canon KJ20x8.2B IRSD
$4,267.55
Tags:
The new KJ20x8.2B IRSD is portable 2/3” HD telephoto lens specifically designed to support low-cost image acquisition systems for a wide range of applications and users, from broadcast ENG to professional freelance HD shooters.
Product Details
SPECIFICATION
| Lens Model Number | KJ20x8.2B IRSD | |
| Image Size | 2/3” | |
| Zoom Ratio | 20x | |
| Built-in Extender | 2.0x | |
| Range of Focal Length (with Extender) | 8.2 - 164mm 16.4 - 328mm (2.0x) | |
| Maximum Relative Aperture (with Extender) | 1:1.9 at 8.2 - 115.4mm 1:2.7 at 164mm 1:3.8 at 16.4 - 230.8mm (2.0x) 1:5.4 at 328mm (2.0x) | |
| Angular field of view (with Extender) | 4:3 Aspect Ratio (8.8 x 6.6mm) | 56.4° x 43.8° at 8.2mm 3.1° x 2.3° at 164mm 30.0° x 22.8° at 16.4mm (2.0x) 1.5 ° x 1.2° at 328mm (2.0x) |
| 16:9 Aspect Ratio (9.6 x 5.4mm) | 60.7° x 36.5° at 8.2mm 3.4° x 1.9° at 164mm 32.6° x 18.7° at 16.4mm (2.0x) 1.7° x 0.9° at 328mm (2.0x) | |
| Minimum Object Distance (M.O.D.) from lens front | 0.9m (10mm with Macro) | |
| Object Dimensions at M.O.D. (with Extender) | 4:3 Aspect Ratio (8.8 x 6.6mm) | 90.1 x 67.6cm at 8.2mm 4.6 x 3.5cm at 164mm 45.1 x 33.8cm at 16.4mm (2.0x) 2.3 x 1.8cm at 328mm (2.0x) |
| 16:9 Aspect Ratio (9.6 x 5.4mm) | 98.2 x 55.2cm at 8.2mm 5.0 x 2.8cm at 164mm 49.1 x 27.6cm at 16.4mm (2.0x) 2.5 x 1.4cm at 328mm (2.0x) | |
| Size (W x H x L) | 163.3 x 103.0 x 208.0mm | |
| Weight | 1.42kg (3.13lbs) |
