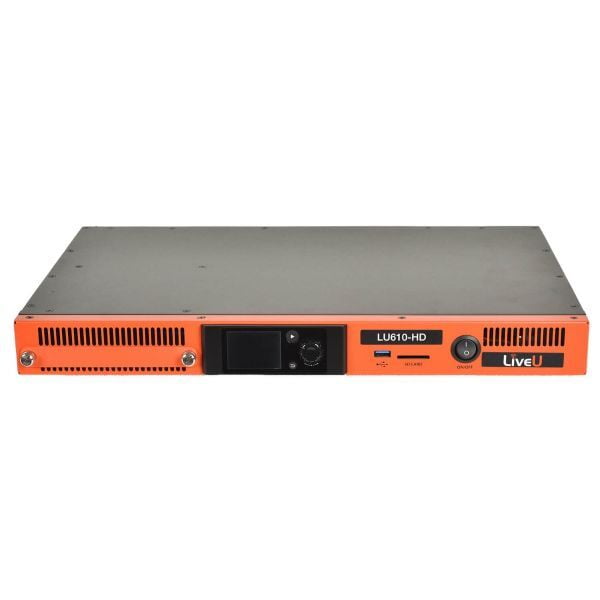

LiveU LU610-HD LU610 HEVC-HD encoder
The LU610 can be used as an alternative for fiber-based productions, enabling high-quality and cost-effective live video transmission from the field to the station.
LU610-HD
VIDEO RESOLUTIONS
1080p50/60/25/30/24, 1080i50/60, 720p50/60/25/30,PAL, NTSC
VIDEO INTERFACES
3G/HD/SD-SDI, HDMI 1.4
VIDEO ENCODER
H.265/HEVC, H.264
AUDIO ENCODER
AAC-HE/LC – up to 4 audio channels
Technical Specifications - Unit
HW CONFIGURATION
Single encoder in a 1U standard rackmount configuration
SIMULTANEOUS BONDING
2x Ethernet ports for connection to LAN and satellite (BGAN/KA/KU over IP),
Wi-Fi, 2x USB for connection to 3G/4G cellular modems,
6 external cellular network connections (when used with LiveU Xtender)
OPERATIONAL MODES
Live: Low latency or maximum quality modes
Live and Store: Live streaming with local high-quality recording on unit
Store and Forward: Three quality-levels (for optimal quality vs speed) FTP: Bonded file transfer
DataBridge: High-speed mobile broadband connectivity from the unit Video Return: Sub-second video return over an external HDM
MULTI-DESTINATION OUTPUT
Diverse A/V output destination: simultaneous stream to SDI and CDNs on the server side
AUTO POWER UP
Power-on feature suitable for automatic vehicle operation (power on with vehicle)
UNIT CONTROL
Local: full monitoring and control using unit’s local interface Remote: full control through LiveU Central management system
RESILIENCY AND QUALITY
Includes LiveU Reliable Transport (LRT™), featuring proprietary algorithms such as automatic Adaptive Bit Rate (ABR), automatic Forward Error Correction (FEC) and other packet loss recovery mechanisms
NETWORK INTERFACES
2 RJ-45 Ethernet ports and 2.4/5GHz Wi-Fi (802.11 a/b/g/n/ac)
OTHER INTERFACES
2x USB 2.0, 3.5mm audio jack, min-XLR audio out, Full size SD card slot,
2x RP-SMA Wi-Fi, Full size HDMI out
DIMENSIONS
Industry-standard 1U rackmount server: 44 H x 436 W x 280 D (mm) / 1.73” H x 17.17” W x 11.02” D (in)
WEIGHT
5Kg (176oz)
VIBRATION
MIL-STD-810G method 514.6 | Category 4
TEMPERATURE
Operating: -5C to +45C (23F to 113F)
POWER
Dual power support: AC: 100V to 240V | DC: 12V to 19V Power consumption <30W
