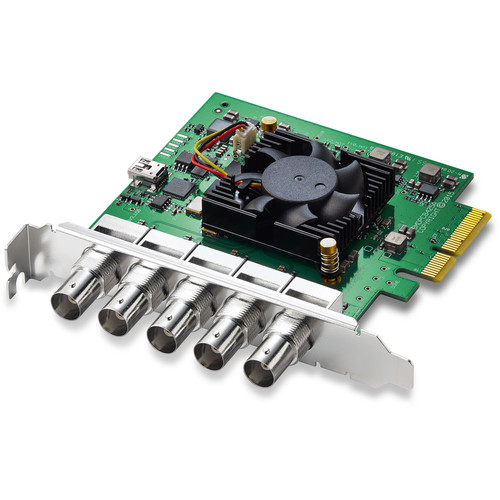

Blackmagic Design DeckLink Duo 2
The Blackmagic Design DeckLink Duo 2 is a versatile video I/O card for professional video workflows. Since each SDI interface can be configured to be either an input or an output, a computer with this card installed can be purposed as a media play-out system, a multi-screen digital signage server,
SPECIFICATION
Host Connection | PCIe x4 (PCIe 2.0) |
Input
Video Input Connectors | 4 x BNC (12G-SDI) Female |
Input Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) |
Audio Input Connectors | None |
Input Audio Format | Analog: 48 kHz / 24-Bit |
Embedded Audio Input | SDI: 16-Channel |
Standards
Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M |
Connectivity
Other I/O | 1 x BNC Blackburst, Reference, Tri-Level Sync Input |
Hardware
OS Compatibility | Windows 8.1.10 or Later |
Power Consumption | 10 W |
Environmental
Operating Temperature | 41 to 104°F / 5 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General
Certifications | C-Tick, CE, FCC, as per Manufacturer |
Dimensions | 3.7" / 9.4 cm |
Weight | 5.64 oz / 160 g |
Warranty Length | Limited 3-Year Warranty |
