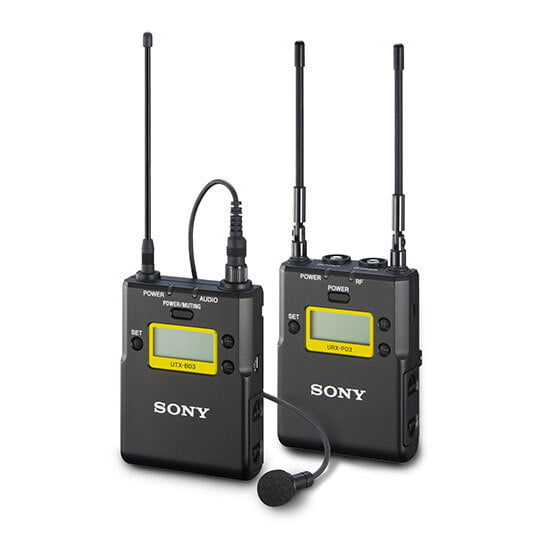

Sony UWP-D11/K33 Wireless Radio Microphone Kit
The UWP-D11 belt-pack wireless microphone package offers the sound quality of digital audio processing combined with the reliability of analogue FM modulation. The package includes the UTX-B03 belt-pack transmitter and URX-P03 portable receiver.
Non-returnable
$623.08
Customize
Available Offer
Share :
Product Details
SPECIFICATION
Oscillator Type
Crystal-controlled PLL Synthesizer
Reception Type
Space diversity
Antenna Type
1/4 wave length wire
Carrier Frequencies: Americas
14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) (not available in Brazil)
25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36)
42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42-51)
90UC: 941.500 MHz to 952.000 MHz, 952.850 MHz to 956.250 MHz, and 956.450 MHz to 959.850 MHz (available in the U.S. only)
25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36)
42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42-51)
90UC: 941.500 MHz to 952.000 MHz, 952.850 MHz to 956.250 MHz, and 956.450 MHz to 959.850 MHz (available in the U.S. only)
Carrier Frequencies: Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand
CE21: 470.025 MHz to 542.000 MHz (not available in Australia, Malaysia, Vietnam or New Zealand)
CE33: 566.025 MHz to 633.000 MHz (not available in New Zealand)
CE42: 638.025 MHz to 694.000 MHz
CE51: 710.025 MHz to 782.000 MHz (only available in Europe)
CE33: 566.025 MHz to 633.000 MHz (not available in New Zealand)
CE42: 638.025 MHz to 694.000 MHz
CE51: 710.025 MHz to 782.000 MHz (only available in Europe)
Carrier Frequencies: China
CN38: 710.025 MHz to 782.000 MHz
Carrier Frequencies: Thailand, Taiwan, Singapore
E: 794.125 MHz to 805.875 MHz
Carrier Frequencies: Japan
JB: 806.125 MHz to 809.750 MHz
Carrier Frequencies: South Korea
KR3: 925.125 MHz to 937.500 MHz
Frequency Response
23Hz to 18kHz (typical)
Signal-to-Noise Ratio
96dB (max deviation, A-weighted)
Distortion (T.H.D)
0.9% or less (-60dBV, 1kHz input)
Audio Delay
Approx. 0.35 msec
Analog Output
3-pole mini jack, unbalanced
Analog Output Level
-60dBV (at ±5kHz deviation)
Analog Output Adjust Range
-12dB - +12dB (3dB step)
Headphone Output
φ3.5 mm ( 5/32 inch) stereo mini jack
Headphone Output Level
Max. 10mW (at 16ohm load)
Pilot Tone Signal
32 kHz/ 32.382 kHz/ 32.768 kHz
Display
LCD
Power Requirements
DC 3.0 V (with two AA-size alkaline (LR6) batteries)
DC 5.0V (via USB micro-B)
DC 5.0V (via USB micro-B)
Battery Operating Time
Approx. six hours with Sony's AA-size alkaline (LR6) batteries at 25°C(77°F)
Operating Temperature
0°C to 50°C
32°F to 122°F
32°F to 122°F
Storage/Transport Temperature
-20°C to +55°C
-4°F to +131°F
-4°F to +131°F
Dimensions
63 x 82 x 23.8mm (excluding the anntenas) (W x H x D)
Mass
Approx. 176 g (including batteries)
UTX-B03 Bodypack transmitter
Oscillator Type
Crystal-controlled PLL Synthesizer
Antenna Type
1/4 wave length wire
Type of Emission
F3E
Carrier Frequencies: Americas
UC14: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) (not available in Brazil)
UC30: 566.125 MHz to 607.875 MHz and 614.125 MHz to 637.875 MHz (UHF-TV channels 30 - 36 and 38 - 41) (not available in Brazil)
UC42: 638.125 MHz to 697.875 MHz (UHF-TV channels 42 - 51)
UC30: 566.125 MHz to 607.875 MHz and 614.125 MHz to 637.875 MHz (UHF-TV channels 30 - 36 and 38 - 41) (not available in Brazil)
UC42: 638.125 MHz to 697.875 MHz (UHF-TV channels 42 - 51)
Carrier Frequencies: Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand
CE21: 470.025 MHz to 542.000 MHz (not available in Australia, Malaysia, Vietnam or New Zealand)
CE33: 566.025 MHz to 633.000 MHz (not available in New Zealand)
CE42: 638.025 MHz to 694.000 MHz
CE51: 710.025 MHz to 782.000 MHz (only available in Europe)
CE33: 566.025 MHz to 633.000 MHz (not available in New Zealand)
CE42: 638.025 MHz to 694.000 MHz
CE51: 710.025 MHz to 782.000 MHz (only available in Europe)
Carrier Frequencies: China
CN38: 710.025 MHz to 782.000 MHz
Carrier Frequencies: Thailand, Taiwan, Singapore
E: 794.125 MHz to 805.875 MHz
Carrier Frequencies: Japan
JB: 806.125 MHz to 809.750 MHz
Carrier Frequencies: South Korea
KR3: 925.125 MHz to 937.500 MHz
RF Power: Americas, Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand, China
30 mW / 5mW
RF Power: Japan, South Korea, Thailand, Taiwan, Singapore
10 mW / 2 mW
Capsule Type
Electret condenser
Directivity
Omni-directional
Input Connector
3-pole locking mini jack
Reference Input Level
MIC: -60 dBV (at 0-dB attenuator level)
LINE: +4 dBu
LINE: +4 dBu
Audio Attenuator Adjustment Range
0 dB to 21 dB (in 3-dB steps): Mic input
Frequency Response: Americas, Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand
Transmission 23 Hz to 18 kHz (typical)
Frequency Response: China, Thailand, Taiwan, Singapore, South Korea
Transmission 23 Hz to 18 kHz (typical)
Frequency Response: Japan
Transmission 40 Hz to 15 kHz (typical)
Signal-to-Noise Ratio
96dB (max deviation, A-weighted)
Audio Delay
Approx. 0.35 msec
Pilot Tone Signal
32 kHz/ 32.382 kHz/ 32.768 kHz
Display
LCD
Power Requirements
DC 3.0 V (with two AA-size alkaline (LR6) batteries)
DC 5.0V (via USB micro-B)
DC 5.0V (via USB micro-B)
Battery Operating Time: Americas, Europe, UAE, South Africa, Australia, Malaysia, Vietnam
Approx eight hours with Sony's AA-size alkaline (LR6) batteries at 25°C (77°F) at 30-mW output
Battery Operating Time: New Zealand, China
Approx eight hours with Sony's AA-size alkaline (LR6) batteries at 25°C (77°F) at 30-mW output
Battery Operating Time: Thailand, Taiwan, Singapore, Japan, South Korea
Approx 10 hours with Sony's AA-size alkaline (LR6) batteries at 25°C (77°F) at 10-mW output
Operating Temperature
0°C to 50°C
32°F to 122°F
32°F to 122°F
Storage/Transport Temperature
-20°C to +55°C
-4°F to +131°F
-4°F to +131°F
Dimensions
63 x 82 x 20 mm (excluding the anntenas) (W x H x D)
Mass
Approx. 149 g (including batteries)
