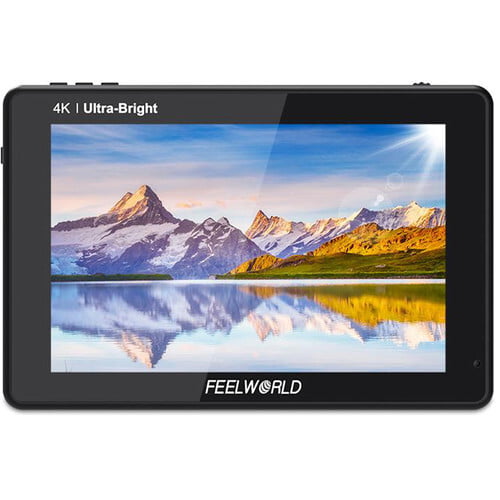

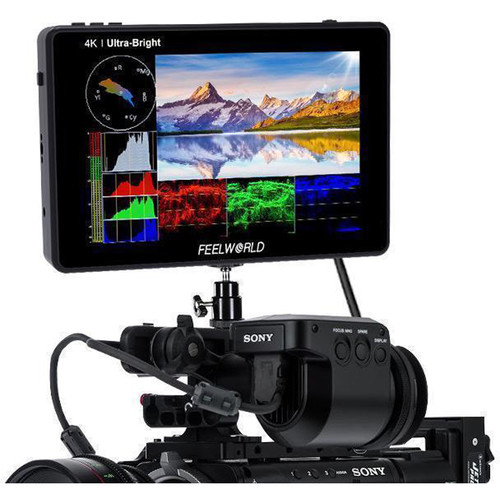

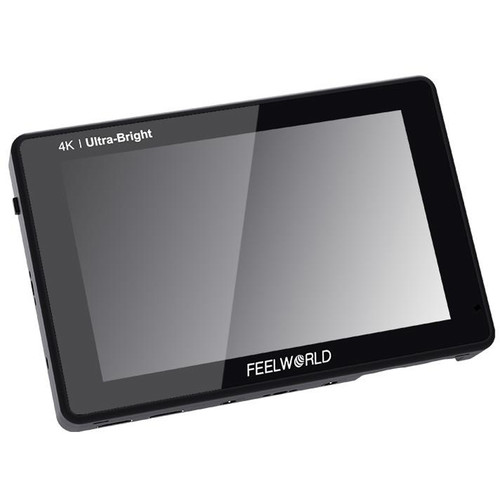

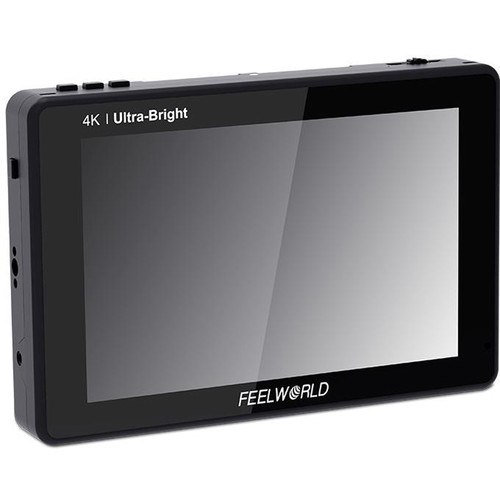

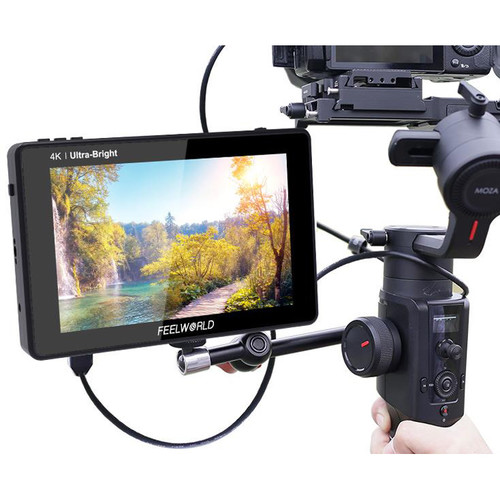

FeelWorld LUT7S 7" 3D LUT 4K HDMI and SDI Monitor
Feelworld LUT7S 7" 4K HDMI and SDI Monitor displays SD, HD, UHD, and DCI 4K video. The LCD panel boast a 1920 x 1200 resolution, 16:10 aspect ratio, 1200:1 contrast ratio, and a 2200 cd/m² measured brightness for easy viewing outdoors as well as indoors.
Specification
Display
Panel Type | IPS-Type LCD |
Display Size | 7.0" / 17.8 cm |
Aspect Ratio | 16:10 |
Viewing Angle | Horizontal: 160° (80/80) |
Touchscreen | Yes |
Maximum Brightness | 2200 cd/m2 |
Contrast Ratio | 1200:1 |
Pixels Per Inch (ppi) | 323 ppi |
Image Controls | Anamorphic De-Squeeze, Check Field, Focus Peaking, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Screen Markers, Vectorscope, Waveform |
Wi-Fi | None |

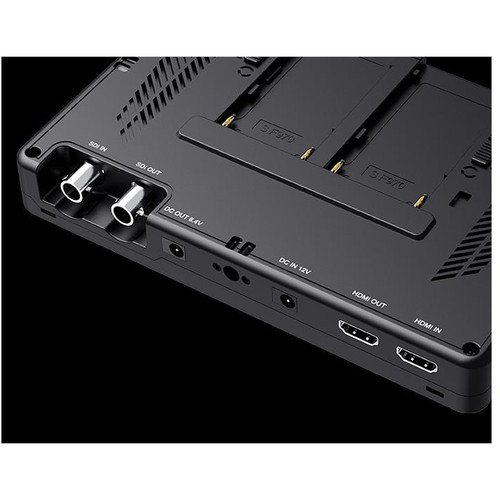

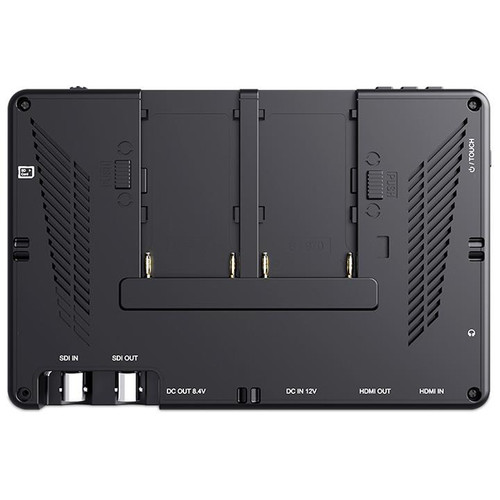

I/O
Video | 1 x HDMI Type A (HDMI 1.4) Input |
Audio | 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | 1 |
Power | 1 x 3.5 mm Barrel Output |
Format Support
Video Format | HDMI |
Power
Battery Type | 2 x L-Series (Interchangeable Mount) |
Power Consumption | 20 W |
Mounting
Mounting | 1 x 1/4"-20 Female |
Environmental
Operating Temperature | -4 to 122°F / -20 to 50°C |
Storage Temperature | -22 to 140°F / -30 to 60°C |
General
Dimensions | 7.5 x 5 x 1.1" / 190 x 126 x 27 mm |
Weight | 16.23 oz / 460 g, Including Battery Plate |
Warranty Length | Limited 1-Year Warranty |
Packaging Info
Package Weight | 2.105 lb |
Box Dimensions (LxWxH) | 8.8 x 6.4 x 3.2" |
