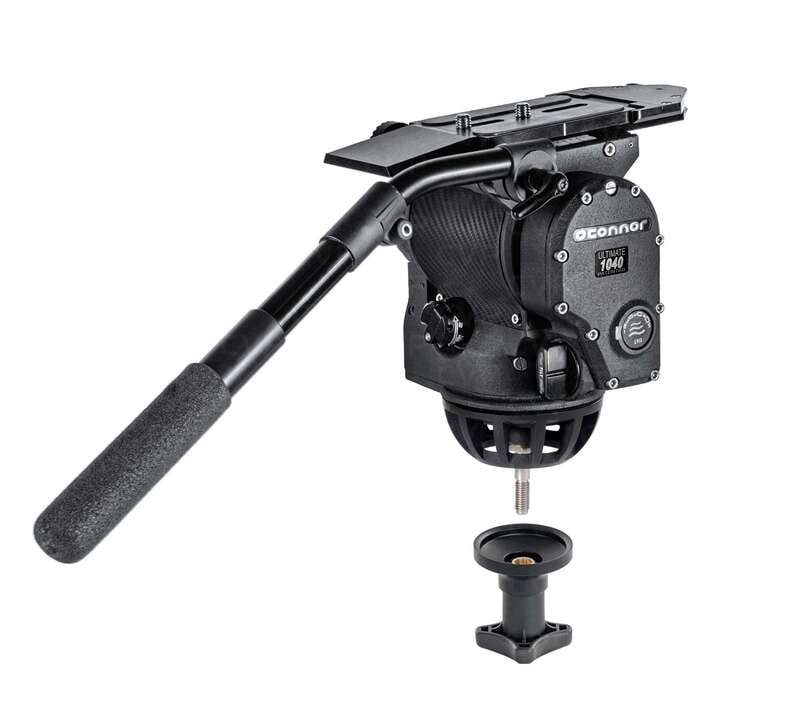

Oconnor Ultimate 1040 Fluid Head Package
The OConnor Ultimate 1040 Fluid Head is a lightweight fluid head that shares features with the other fluid heads in the OConnor Ultimate fluid head line. This allows operators to easily transition between lighter and heavier cameras without having to relearn or think about the differences between fluid heads.
Camera Plate
Camera Plate Features | Quick Release |
Camera Plate Type | Large Euro Plate |
Camera Mounting Screw | 2 x 3/8"-16 Male |
Tripod Platform
Camera Platform Adjustment | Yes |
Base Mount | 100 mm Half Ball |
Pan & Tilt
Drag Control | Tilt: Continuous |
Vertical Tilt | +90° to -90° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
Physical
Load Capacity | 0 to 52 lb / 0 to 23.59 kg at CoG 4" / 10.16 cm |
Counter Balance | Continuous (0 to 45 lb / 0 to 20.41 kg) |
Center of Gravity | 4 to 8" / 10.16 to 20.32 cm |
Pan Handle Fittings | 2 x Rosette |
Base Diameter | 3.94" / 100 mm |
Dimensions | 7.6 x 6.2 x 4.6" / 19.3 x 15.75 x 11.68 cm |
Weight | 10.6 lb / 4.81 kg |
