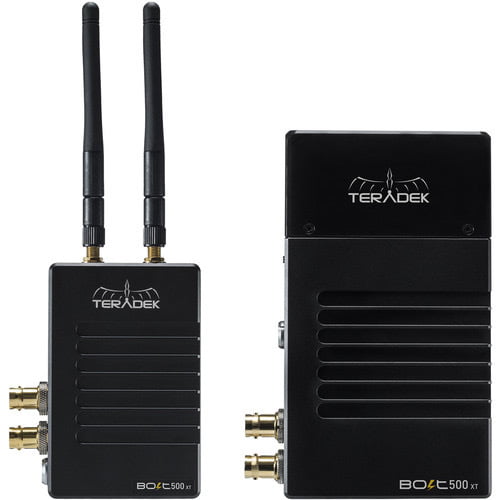

Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter and Receiver Set
Non-returnable
$2,490.00
Tags:
The Teradek 10-1935-1G Bolt XT satisfies the needs of the most discerning professionals, from powerful software tools and rock-solid performance to smart power options and backward compatibility.
Product Details
- Specifications
- Bolt XT 500 TX
- Video Inputs: 1 x SD/HD/3G-SDI (75 Ohm BNC), 1 x Type A receptacle HDMI
- Video Outputs: 1 x HD/SD/3G-SDI Loop-out (75 Ohm BNC)
- SDI Ancillary Data Support: supports metadata, timecode, and start/stop flags from certain cameras.
- Color Sampling: SDI: YCbCr 4:2:2, 8-bit. HDMI: RGB 4:4:4, 8-bit
- Delay Tx To Rx: <0.001sec
Supported Resolutions - 1080p 23.98/24/25/29.97/30/50/59.94/60
- 1080psf 23.98/24/25/29.97/30
- 1080i 50/59.94/60
- 720p 50/59.94/60
- 480p 59.94/576p50 (via HDMI ports only)
- 480i (NTSC)/576i(PAL)
Video Processing - Video Compression: Visually lossless
- Video Format Conversion Support: Yes
Audio Processing - Audio Format: 48kHz 24-bit PCM
- Audio Input: Embedded Audio Input
Physical - Dimensions: 0.95" x 2.6" x 4.47"
- Weight: 8oz
- Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
- Mountability: Multiple mounting options with M3 and 1/4" holes, 3/8" ARRI style accessory mount
Interfaces - Http: None
- Configuration Interfaces: None
- Desktop App: Feature-rich Bolt Manager Application for OSX & Windows
- Usb Interface Functionality: Upgrade via Mini-USB
Network - Non-DFS Freq.: US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
- DFS Freq.: US: 5.27 ~ 5.55 GHz and 5.67 GHz
- Channel Bandwidth: 12x 40MHz wide channels
- Rf Channel Selection: Auto only (NOT configurable)
- Encryption: AES-128
- RF Power: 17dBm
- Range: Up to 500ft line of sight
- Unicast Multicast: Unicast / Multicast
- Noise Rejection: Can coexist with WiFi and 5GHz cordless phones
Power - Power Input: 2-Pin Connector 7-28 VDC
- Battery: None
- Nominal Power Consumption: 7.3 Watts (Measured at 1080p60)
- Operating Temp: 0 ~ 40 deg-C
Bolt 1937 Bolt XT 500 Wireless RX - Video Outputs: 1 x SD/HD/3G-SDI (75 Ohm BNC). 1 x HDMI Type-A receptacle
- SDI Ancillary Data Support: supports metadata, timecode, and start/stop flags from certain cameras.
- Color Sampling: SDI: YCbCr 4:2:2, 8-bit, HDMI: RGB 4:4:4, 8-bit
- Delay Tx To Rx: <0.001sec
Supported Resolutions - 1080p 23.98/24/25/29.97/30/50/59.94/60
- 1080psf 23.98/24/25/29.97/30
- 1080i 50/59.94/60
- 720p 50/59.94/60
- 480p 59.94/576p50
- 480i(NTSC)/576i(PAL)
- Video Compression: Visually lossless
- Test Pattern Generator Support: Yes
- Video Format Conversion Support: Yes
- Color Correction: 1024 1D LUT, 17x17x17 3D LUT
- Audio Format: 48kHz 24-bit PCM
- Audio Input: Embedded Audio Input
Physical - Dimensions: 6" x 3.4" x 1"
- Weight: 10.5oz
- Construction: Milled Aluminum(Chassis) and regulation-compliant PCB: Plastic Cap
- Mountability: Multiple mounting options with M3 and 1/4" holes
Interfaces - HTTP: None
- Configuration Interfaces: OLED Screen with Menu Joystick Navigation
- Desktop App: Feature-rich Bolt Manager Application for OSX & Windows
- Usb Interface Functionality: Upgrade via Mini-USB
Network - Non-DFS Freq.: US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
- DFS Freq.: US: 5.27 ~ 5.55 GHz and 5.67 GHz
- Channel Bandwidth: 12x 40MHz wide channels
- Rf Channel Selection: Auto only (NOT configurable)
- Encryption: AES-128
- Rf Power: 15dBm EIRP
- Range: Up to 500ft line of sight
- Noise Rejection: Can coexist with WiFi and 5GHz cordless phones
Power - Power Input: 2-Pin Connector 7-28 VDC
- Nominal Power Consumption: 9 Watts
- Operating Temp: 0 ~ 40 deg-C
- Item Includes
- 1x Protective SKB Case - military-standard waterproof hard case with custom foam (12in x 9in x 4.5in)
- 1x Teradek Vinyl Zipper Bag 250x150mm
Transmitter - 1x 2-pin Connector to PowerTap 18 inch Cable
- 1x Hot Shoe Adapter (1/4"-20 inch)
- 2x Antenna 2dBi WiFi 2.4/5.8 GHz
- 1x USB 2.0 Cable (A-Male to Mini-B)
- 1x HDMI 18in Cable (Type A to Type A)
- 1x SDI (BNC to BNC) Cable 10 inch
Receiver - 1x Lightstand Adapter (1/4"-20 inch)
- 1x USB 2.0 Cable (A-Male to Mini-B)
- 1x PSU 2-Pin Connector to 18W AC Adapter 6ft cable
- 1x HDMI 18in Cable (Type A to Type A)
- 1x SDI (BNC to BNC) Cable 10 inch
