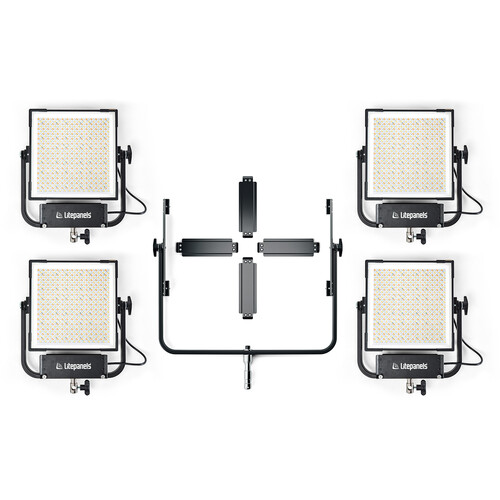

Litepanels Gemini 1x1 Hard Quad Array Light Kit
Litepanels has put together this Gemini 1x1 Hard Quad Array Light Kit to offer you the benefit of increased power for larger productions or more articular lighting designs.
Light Fixture
Photometrics | 3200K: |
Color Temperature | 2700 to 10,000K |
Color Modes | RGBWW |
Color Accuracy Standard | CRI 98 |
Cooling System | Fan |
Dimming | Yes, 0 to 100% (Continuous) |
Display | LCD |
Housing Material | Aluminum |
Expected Lamp Life | 50000 Hours |
Beam Angle | 46° |
Rectangular Panel Size | 12 x 12" / 30.5 x 30.5 cm |
Fixture Dimensions | Fixture: 12.6 x 12.6 x 4.3" / 32.0 x 32.0 x 10.9 cm |
Fixture Weight | 13.2 lb / 6 kg |
Connectors
Power Input Connection | XLR 3-Pin |
DMX Connection | XLR 5-Pin, RJ45 |
Mounting
Yoke Mount | TVMP/ Hex Bolt |
Yoke
Yoke Type | Yoke/Bracket |
Remote Operation
Remote Control Type | Bluetooth, CRMX, DMX, Wireless DMX |
Power
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 13 to 28 VDC |
Power Source | AC Adapter, External Battery |
Max Power Consumption | 200 W |
Power Supply
Power Supply Output | 14 VDC |
Power Supply Power Connector | IEC Input / XLR 3-Pin Output |
Cable Type | IEC to Edison (NEMA 5-15) |
Physical
IP Rating | IP20 |
Operating Temperature | -4 to 113°F / -20 to 45°C |
Packaging Info
Package Weight | 48 KG |
Box Dimensions (LxWxH) | 34 x 34 x 31" |
