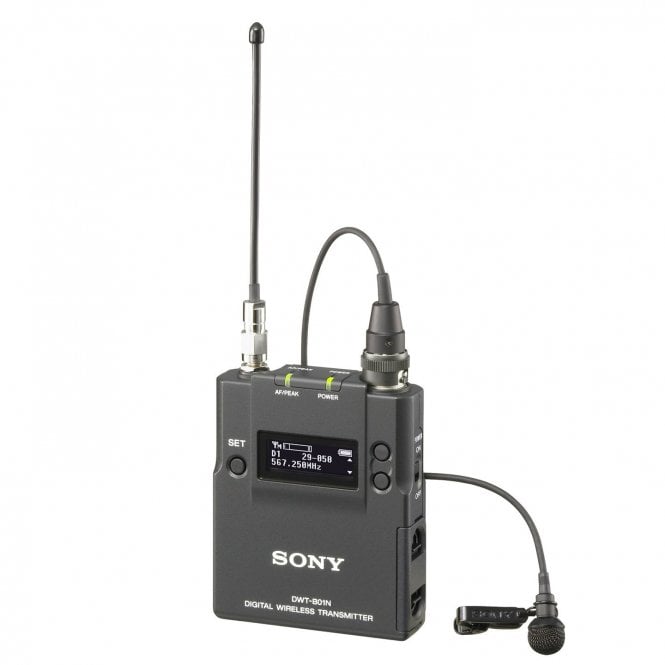

Sony DWT-B01N/21 Digital Wireless Bodypack Transmitter
Non-returnable
$2,030.77
Tags:
The DWT-B01N body-pack transmitter forms part of the DWX series system, offering high-quality full-digital operation, shorter audio latency and more reliable RF transmission mode – ideal for a variety of high-quality applications, including broadcast studio, theatre and live sound.
Product Details
Specifications
- Wireless Interface: WiDIF-HP
- Oscillator Type: Crystal-controlled PLL Synthesizer
- Antenna Type: λ/4 flexible wire
- Type of Emission: G1E or G1D
Carrier Frequencies - CE7:
- CE21: 470.025 MHz to 542.000 MHz (TV-21 to TV-29 channels) 25 kHz steps
- RF Power: 1 mW/10 mW/50 mW (e.r.p) selectable
- Input Connector: Sony 4-pin (SMC9-4S) (female)
- Reference Input LevelMIC: -60 dBV (-58 dBu), 1 kHz (at 0-dB attenuator level) / LINE: +4 dBu, 1 kHz
- Maximum Input Level: MIC: -22 dBu (with 0 dB attenuator), LINE: +24 dBu
- Audio Attenuator Adjustment Range: 0 to 48 dB (3 dB steps, MIC input mode only)
- Frequency Response: Transmission: 20Hz to 22kHz (typical)
- Dynamic Range: 106 dB typical (A-weighted, T.H.D=1%)
Distortion (T.H.D):
- MODE1, MODE2: 0.03% or less
- MODE3: 0.3% or less
Audio Delay:
- MODE1: 1.5 msec (total: 3.4msec)
- MODE2: 1.0 msec (total: 1.5msec)
- MODE3: 2.1 msec (total 4.0msec)
- Wireless Remote Control: Cross Remote (2.4-GHz IEEE802.15.4 compliant)
- Display: OLED
- Power Requirements: DC 3.0 V (with two AA-size alkaline (LR6) batteries)
Battery Operating Time:
- Approx. 5 hours with Sony's AA-size alkaline (LR6) batteries at 25℃(77°F) at 10-mW output
(with the wireless remote control function off and DIMMER MODE set to AUTO OFF)
- Operating Temperature: 0°C to 50°C / 32°F to 122°F
- Storage/Transport Temperature: -20°C to +60°C / -4°F to +140°F
- Dimensions: 63 x 17 x 73 mm (excluding the anntenas) (W x H x D)
- Mass: Approx. 125 g (including batteries)
