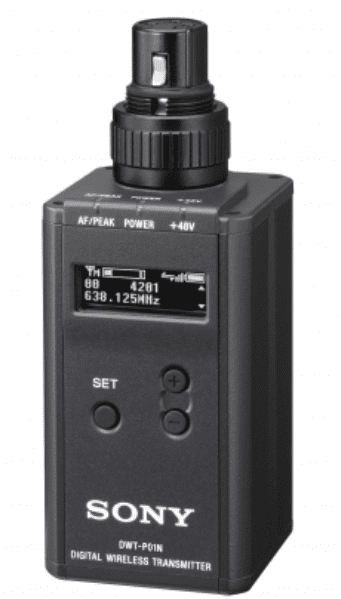

Sony DWT-P01N/33 Digital Wireless Microphone Plug-on Transmitter
The DWT-P01N XLR plug-on transmitter forms part of the DWX N series digital wireless microphone system that offers high-quality full-digital operation shorter audio latency and more reliable RF transmission mode - a perfect match for high-quality ENG/EFP applications.
Specifications
| Crystal controlled PLL synthesizer |
Carrier Frequencies: Americas | UC14: UHF-TV channels 14-25 (470 - 542 MHz) |
(depending on model) | UC30: UHF-TV channels 30-36 (566-608 MHz) and 38-41 (614-638 MHz) |
UC42: UHF-TV channels 42-51 (638-698 MHz) | |
Carrier Frequencies: Europe, Middle | CE33: UHF-TV channels 33-40 566 MHz to 630 MHz (Not available in New Zealand) |
East, Africa, Australia, New Zealand | CE42: UHF-TV channels 42-50 638 MHz to 710 MHz |
(depending on model) | CE51: UHF-TV channels 51-59 710 MHz to 782 MHz (Not available in Australia or New Zealand) |
Channel step | 25 kHz |
RF power output | 1 mW/10 mW/50 mW (e.r.p.) selectable |
Occupied RF bandwidth | 192 kHz or less |
Audio delay | Approx. MODE1: 1.5 msec (total: 3.4msec) /MODE2: 1.0 msec (total: 1.5msec)/MODE3: 2.1 msec (total 4.0msec) |
Audio section | |
Maximum input level | MIC -22 dBu (with 0 dB attenuator) |
LINE +24 dBu | |
Audio attenuator adjustment range (pad) | 0 to 48 dB (3-dB steps, MIC input mode only) |
Input connector | XLR-3-11C (female) (x1) |
Input impedance | 4.7 k/ohms or more |
General | |
Operating voltage | DC 3.0 V, (two LR6 AA-size alkaline batteries) |
Battery life | Approx. 5 hours (at 25 °C (77 °F), 10-mW output using Sony LR6 (AA)-size alkaline batteries with |
CODEC MODE set to MODE1, the wireless remote control function off, DIMMER MODE set to AUTO | |
OFF, and +48 V set to OFF) | |
Dimensions (W x H x D) | Approx. 44 x 78 x 44 mm (1 3/4 x 3 1/8 x 3/4 inches) excluding projection |
Mass | Approx. 245 g (9 oz) including batteries |
Supplied Accessories | Soft case (1) |
Spare battery case (1) | |
USB adapter cable (1) | |
CD-ROM (1) | |
Before Using this Unit (3) |
