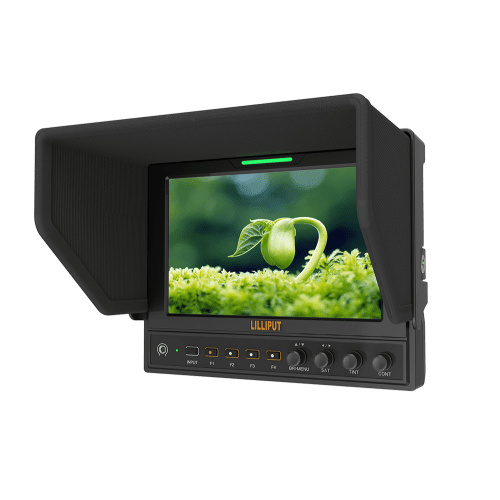

Lilliput 662/S 7" 3G-SDI/HDMI Field Monitor
The 662/S 7" 3G-SDI/HDMI Field Monitor from Lilliput is a 7" widescreen metal framed LCD camera monitor with 3G-SDI and HDMI input and output. It offers 1280 x 800 resolution with 400 cd/m² brightness, an 800:1 contrast ratio, and features advanced functionality such as peaking, focus assist, waveform tools, and false color filters.
Lilliput 662
Monitor Type | Widescreen |
Screen Size | 7" (18 cm) |
Resolution | Native: 1280 x 800 |
Display Scan Frequency | 60 to 72 Hz |
Display Colors | Not specified by manufacturer |
Viewing Angle | 178 x 178° |
Brightness | 400 cd/m2 |
Contrast Ratio | 800:1 |
Response Time | 6 ms |
Inputs/Outputs | Video In |
Operating Temperature | Not specified by manufacturer |
Power Requirements | 12 VDC |
Power Consumption | Not specified by manufacturer |
Mount Type | 1/4"-20 threads, shoe mount |
Dimensions (WxHxD) | 7.6 x 5.9 x 5.5" (19.2 x 15.2 x 14.1 cm) with cover |
Weight | 14 oz (400 g) |
Packaging Info
Package Weight | 6.095 lb |
Box Dimensions (LxWxH) | 12.6 x 11.05 x 4.8" |
