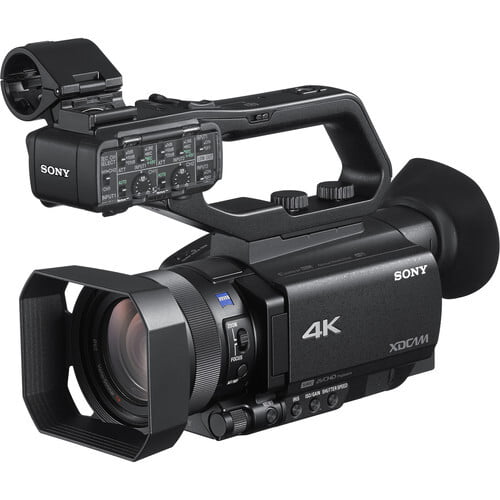

Sony PXW-Z90V 4K HDR XDCAM with Fast Hybrid AF

Image Sensor

1-Chip 1" CMOS Sensor

Effective Sensor Resolution

14.2 MP

Gain

-3 to 33 dB

Minimum Illumination

1.7 Lux at 1/30 Shutter Speed

White Balance Range

2300 to 15,000K

35mm Equivalent Focal Length

29mm

Max Digital Zoom

48x

Minimum Aperture

f/2.8 to 4.5

Minimum Focusing Distance

Wide: 0.4" / 1.0 cm
Telephoto: 39.4" / 100.1 cm

Image Stabilization

Optical

Shutter Speed

1/6 to 1/10,000 sec

Built-In ND Filter

Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Built-In Microphone Type

Stereo

Recording Media

1 x SDXC/Memory Stick PRO Duo Hybrid Card Slot
1 x SDXC Card Slot

Recording Modes

XAVC:
3840 x 2160p at 23.98/25/29.97 fps (60 to 100 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s)
1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s)
1280 x 720p at 50/59.94 fps (50 Mb/s)
AVCHD:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s)

Variable Frame Rates

UHD: 1 to 30 fps
1080p: 1 to 120 fps

Audio Recording

2-Channel 24-Bit 48 kHz

Video Connectors

1 x HDMI Output
1 x BNC (Composite) Output
1 x BNC (3G-SDI) Output

Audio Connectors

1 x 1/8" / 3.5 mm Stereo Headphone Output
2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input

Other I/O

1 x USB Micro-B
1 x USB Micro-B Control
1 x 2.5 mm LANC Control

Wireless Interfaces

2.4 GHz, 5 GHz Wi-Fi

Display Type

Articulating LCD

Size

3.5"

Resolution

1,560,000 Dot

EVF Display Type

OLED

Screen Size

.39"

EVF Resolution

2,360,000 Dots

Power Connectors

1 x Barrel Input

Power Consumption

6.9 W

Storage Temperature

-4 to 40°F / -20 to 60°C

Tripod Mount

1/4"-20 Female

Dimensions

5.1 x 7.1 x 11.3" / 130 x 181.5 x 287 mm

Weight

2.2 lb / 1020 g

Warranty Length

None

Package Weight

Box Dimensions (LxWxH)

10.25 x 9.7 x 6"
