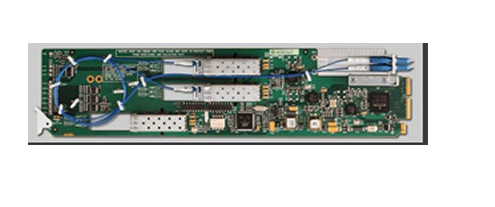

Ross Video FSR-6605 3G SDI Fiber Da/Regen
Non-returnable
$2,818.82
Tags:
Single Optical to Electrical Converter with Optical Regeneration
Single channel SDI optical to electrical converter supporting data rates from 143Mb/s to 2.97Gb/s.
Details
The FSR-6605 is a fiber optic receiver to serial digital SDI converter supporting serial digital data rates from 143Mb/s up to 2.97Gb/s (1080p). SDI outputs are reclocked providing excellent jitter and return loss specifications.
Single channel SDI optical to electrical converter supporting data rates from 143Mb/s to 2.97Gb/s.
Details
The FSR-6605 is a fiber optic receiver to serial digital SDI converter supporting serial digital data rates from 143Mb/s up to 2.97Gb/s (1080p). SDI outputs are reclocked providing excellent jitter and return loss specifications.
Key Features
- Optical to Electrical for all SMPTE 424M, SMPTE 259M-C, SMPTE 292M standards
- Supports single-mode fiber
- Hot-swappable from front of frame with no external connect / reconnect required
- Optical output power -7dBm
- Optical input sensitivity -18dBm
- Optical connections: LC / UPC
- Optical wavelength 1310nm
- Reclocking on all outputs at 270Mb/s, 1.483Gb/s, 1.485Gb/s, 2.970Gb/s
- Alarming for signal presence and optical faults
- Reclocked SDI outputs
- 5-year transferable warranty
Product Details
- Optical to Electrical for all SMPTE 424M, SMPTE 259M-C, SMPTE 292M standards
- Supports single-mode fiber
- Hot-swappable from front of frame with no external connect / reconnect required
- Optical output power -7dBm
- Optical input sensitivity -18dBm
- Optical connections: LC / UPC
- Optical wavelength 1310nm
- Reclocking on all outputs at 270Mb/s, 1.483Gb/s, 1.485Gb/s, 2.970Gb/s
- Alarming for signal presence and optical faults
- Reclocked SDI outputs
