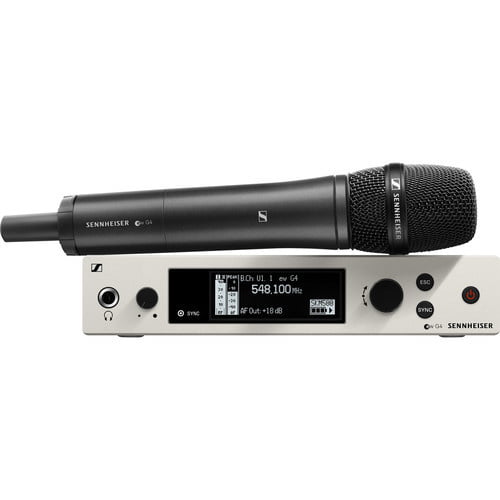

Sennheiser ew 500 G4-KK205-GW1
The KK 205 is a premium quality capsule head for professional Sennheiser handheld transmitters, now available with the evolution wireless G4 500 Series.
- Dimensions
Approx. 202 x 212 x 43 mm
- Compander
Sennheiser HDX
- THD, total harmonic distortion
≤ 0.9 %
- Weight
Approx. 980 g
- Audio output
6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
- Signal-to-noise ratio
≥ 115 dBA
- Switching bandwidth
up to 88 MHz
- Peak deviation
±48 kHz
- Nominal deviation
±24 kHz
- Modulation
Wideband FM
- Power supply
12 V DC
- Current consumption
350 mA
- Adjacent channel rejection
Typically ≥ 75 dB
- Intermodulation attenuation
Typically ≥ 70 dB
- Receiving frequency
Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity
< 2.5 μV for 52 dBA eff S/N
- Squelch
5 to 25 dBμV in steps of 2 dB
- Equalizer
Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
- Antenna Connector
2 BNC sockets
- Temperature Range
-10 °C to +55 °C
- Receiver Principle
True diversity
- Blocking
≥ 75 dB
SKM 500 G4
- Dimensions
Approx. Ø 50 x 265 mm
- Compander
Sennheiser HDX
- THD, total harmonic distortion
≤ 0.9 %
- Weight
(incl. batteries) approx. 450 g
- Signal-to-noise ratio
≥ 115 dBA
- RF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth
up to 88 MHz
- Peak deviation
±48 kHz
- Nominal deviation
±24 kHz
- Operating time
Typically 8 h
- Modulation
Wideband FM
- Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 µA
- Powering
3 V battery / 2.4 V rechargeable battery
- Transmission frequency
Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response
80 – 18,000 Hz
- Temperature Range
-10 °C to +55 °C
- Frequency stability
≤ ±15 ppm
KK 205
- Max. sound pressure level
150 dB
- Pick-up pattern
supercardioid
- Signal-to-noise ratio
70 dB
- Sensitivity
2.8 mV/Pa
