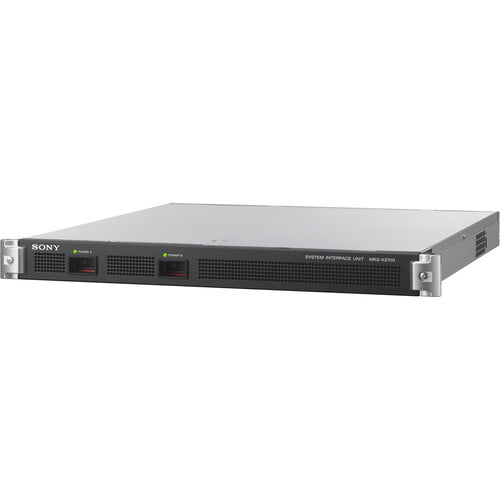

Sony MKS-X2700 System Interface Unit for ICP-X7000 Control Panel
The Sony MKS-X2700 System Interface Unit is used in the ICP-X7000 Control Panel. It features serial tally and tally/GPI interfaces, along with a remote interface that supports various protocols.
Specifications
Connections
LAN | 1 x RJ45, 1000BASE-T (MVS LAN) |
Tally | Serial: 2 x 9-Pin D-Sub, RS-422A |
TALLY/GPI | Inputs: 2 x 37-Pin D-Sub, TTL level inputs (34 each) |
Remote | 6 x 9-Pin D-Sub, RS-422A, various protocols |
Bus | 1 x BNC, S-Bus protocol |
Power
Power Requirement | 100 to 240 VAC ±10%, 50/60 Hz (power cord not included) |
Power Consumption | 0.5 to 0.7 A |
Inrush Current | Maximum 85 A (at peak) / 20 A rms (240 VAC) |
General
Operating Temperature | 41 to 104°F (5 to 40°C) |
Storage Temperature | -4 to 140°F (-20 to 60°C) |
Operating Humidity | 10 to 90% Non-condensing |
Dimensions (W x H x D) | 19.0 x 1.8 x 20.5" (482 x 44 x 520 mm) |
Weight | 17.6 lb (8 kg) |
