Sachtler System FSB 4 75/2 AL MS

$1,364.75
FSB 4 fluid head (0307) + tripod 75/2 AL MS (S2036-0003) + padded bag DV 75 S (9108)

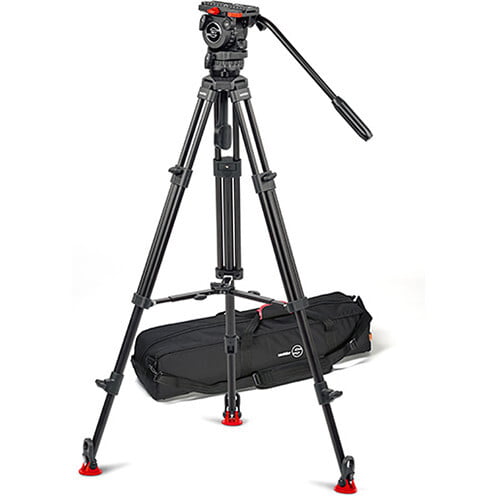

The Sachtler 0371A Tripod System with FSB 4 Fluid Head, Aluminum Legs, and Ground Spreader is a full tripod system for videographers who use cameras and accessories up to 8.8 pounds. The FSB 4 fluid head is suitable for larger DSLR and mirrorless MFT cameras, as well as smaller camcorders. It uses Sachtler's Sideload mechanism that offers the convenience of a touch-and-go system, with the balancing capability of a sliding baseplate. The fluid head features five steps of counterbalance plus 0, and three steps of pan and tilt drag adjustment, plus a zero drag option for pan and tilt.

The legs can support up to 44 pounds, which easily handles the weight of the head, your camera, and accessories. Each leg is individually adjustable, providing a stable platform, even when working on uneven terrain. The included ground level spreader is suitable for use on hard and soft surfaces, and it helps protect delicate surfaces. The padded carry bag holds the tripod system fully assembled with the head mounted on the legs.

Sachtler FSB 4 Fluid Head

With its 8.8 lb capacity and compact size, the Sachtler FSB 4 Fluid Head is ideal for supporting small handheld camcorders and video-enabled DSLRs. As the only head in its class to feature Sachtler's Sideload mechanism, the FSB 4 boasts an exceptionally large sliding range of 4.7". Along with a 5-step counterbalance, this ensures extremely quick and precise balancing. At the same time, no-compromise vibration damping allows for extremely subtle and finely graded movement.

Long sliding range of camera plate

Robust metal housing

Tested Speedbalance technology

Compatible with SOOM and the Sachtler FSB Cell

Sachtler 75/2 Aluminum Tripod for 75mm Fluid Heads

The Sachtler 75/2 Aluminum Tripod for 75mm Fluid Heads is a two-stage tripod that supports up to 44 pounds and is well suited for use with lightweight cameras such as DV-sized camcorders and DSLR cameras. This item is for the legs with head fitting only and does not include available spreaders or rubber feet. The legs feature a working height range of 16.6 to 61.8" when using a ground spreader.

Each leg is independently adjustable in height and angle, allowing you to quickly rough in your position. The adjustments allow the tripod legs to work in oddly shaped spaces and remain stable on uneven surfaces. The lever leg locks are durable and lock the leg heights quickly and securely. The tripod legs can be used by themselves on soft ground, with rubber feet, with a mid-level spreader, or with a ground spreader.

The legs feature independent height adjustments and spread, which allow the legs to remain stable on rough terrain and uneven surfaces including stairs.

The dual spiked feet provide a firm grip on soft surfaces, such as earth or sand, when the legs are at a normal height or when you need to spread them wide for low-angle shots.

Sachtler Spreader SP 75 Ground Tripod Spreader

The Sachtler SP 75 Ground Tripod Spreader fits all 75mm tripods except flowtech, Soom, and Ace M/MS, and it's used when shooting on a level surface such as a studio, city street, office, sports field, or stadium. It allows for rapid setup and pull-down by keeping tripod legs at an equal or preset distance relative to each other. The SP 75 spreader attaches directly to the bottom of a tripod's feet and its telescopic arms allow for the extension of the legs.

Sachtler DV 75 S Padded Bag

The Sachtler DV 75 S Padded Bag is a soft tripod bag designed to carry the Sachtler ENG 75/2 D tripod with various DV heads. The case can be carried by the interlocking handles or with the attached shoulder strap.

Soft padded tripod carry bag

Carried by interlocking handles or attached shoulder strap

For fluid heads FSB and Cine DSLR on tripods Speed Lock 75 CF and ENG 75/2 D



Quantity
Add to Cart
Product Details

Specification


Camera Plate

Camera Plate Features

Quick Release, Sliding Balance Plate

Camera Plate Type

Sideload Plate S

Tripod Platform

Base Mount

75 mm Half Ball

Pan & Tilt

Drag Control

Tilt: 3-Step

Vertical Tilt

+90° to -70°

Panning Range

360°

Independent Pan Lock

Yes

Independent Tilt Lock

Yes

Physical

Load Capacity

8.8 lb / 4 kg

Counter Balance

Incremental 3-Step

Bubble Level

1

Operating Temperature

-40 to 140°F / -40 to 60°C

Weight

5.3 lb / 2.4 kg

Packaging Info

Package Weight

8 lb

Box Dimensions (LxWxH)

18.1 x 10 x 8.4"

Sachtler 75/2 Aluminum Tripod For 75mm Fluid Heads Specs

General

Head Mount Type

75 mm Bowl

Load Capacity

44 lb / 19.96 kg

Maximum Working Height

61.8" / 156.97 cm (with Spreader)

Minimum Working Height

16.56" / 42.06 cm (with Spreader)

Folded Length

27.3" / 69.34 cm

Materials

Aluminum

Weight

5.28 lb / 2.39 kg (Without Spreader)

Legs

Leg Lock Type

Rotating Locking Lever

Independent Leg Spread

Yes

Leg Sections

3

Feet Features

Dual Spiked

Spreader

Mid-Level, Ground (Not Included)

Packaging Info

Package Weight

6.255 lb

Box Dimensions (LxWxH)

30.7 x 7.3 x 7"

Sachtler Spreader SP 75 Ground Tripod Spreader Specs

Payload

88.2 lb / 40 kg

Construction

Plastic
Rubber

Type

On-Ground

Adjustable

Yes

Minimum Length

13.0" / 33.0 cm

Maximum Length

22.8" / 57.9 cm

Weight

1.3 lb / 589.7 g

Packaging Info

Package Weight

1.655 lb

Box Dimensions (LxWxH)

14.8 x 4.95 x 4.55"

Sachtler DV 75 S Padded Bag Specs

Carrying/Transport Options

Connecting Handles, Shoulder Strap

Type of Closure

Zipper

Exterior Material

Cordura

Padded

Yes

Exterior Dimensions

H: 8.3 x W: 7.1 x L: 36.2" / H: 21.1 x W: 18.0 x L: 91.9 cm

Interior Dimensions

L: 33.5" / L: 85.0 cm

Weight

2.2 lb / 1 kg

Packaging Info

Package Weight

4 lb

Box Dimensions (LxWxH)

38 x 9 x 5"
